0034.2512 | SCHURTER
Microfuse 5 x 20 mm, 400 mA, M, 125 V (DC), 250 V (AC), 80 A breaking capacity, 0034.2512
Unit Price (€ / pc.)
0.4046 € *
Standard delivery time from the manufacturer is: 10 Weeks

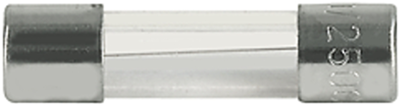

Micro fuse, 0034.2512, SCHURTER
The 0034.2512 is a medium time-lag fuse that allows for a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.
Features
- Material tube glass
- Material endcaps copper alloy nickel-plated
- Medium-time-lag
- Suitable for fuseholder/clips
- High breaking capacity
- Cartridge model
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 5 mm | |
| Rated voltage (DC) | 125 V | |
| Rated voltage (AC) | 250 V | |
| Length | 20 mm | |
| Tripping characteristics | M | |
| Breaking capacity | 80 A | |
| Design | 5 x 20 mm | |
| Enclosure | glass tube | |
| Version | microfuse | |
| Rated current | 400 mA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Original Packaging | Carton with 10 pieces |
| Customs tariff number | 85361010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
