0001.1014 | SCHURTER
Microfuse 5 x 20 mm, 10 A, F, 250 V (AC), 1.5 kA breaking capacity, 0001.1014
Unit Price (€ / pc.)
0.3451 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
3.45 € *
Price list
Quantity
Price per unit*
10 pcs.
0.3451 €
100 pcs.
0.3070 €
500 pcs.
0.2582 €
1000 pcs.
0.2332 €
*incl. VAT plus shipping costs
Subject to prior sale

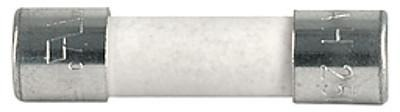

Micro fuse, 0001.1014,SCHURTER
The 0001.1014 is a quick-acting cartridge fuse with that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Material ceramic tube
- Material endcaps copper alloy nickel-plated
- High breaking capacity
- Cartridge model
Applications
- Primary protection in equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 10 A | |
| Design | 5 x 20 mm | |
| Version | microfuse | |
| Rated voltage (AC) | 250 V | |
| Enclosure | ceramic tube | |
| Tripping characteristics | F | |
| diameter | 5.2 mm | |
| Breaking capacity | 1.5 kA | |
| Length | 20 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Carton with 10 pieces |
| Customs tariff number | 85361010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
