0001.1006 | SCHURTER

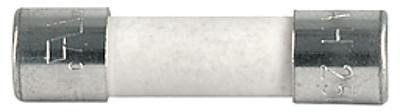

Microfuse 5 x 20 mm, 1.6 A, F, 250 V (AC), 1.5 kA breaking capacity, 0001.1006
Unit Price (€ / pc.)
0.1761 € *
Standard delivery time from the manufacturer is: 10 Weeks
Micro fuse, 0001.1006,SCHURTER
The 0001.1006 is a quick-acting cartridge fuse with that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Material ceramic tube
- Material endcaps copper alloy nickel-plated
- High breaking capacity
- Cartridge model
Applications
- Primary protection in equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 5.2 mm | |
| Rated voltage (AC) | 250 V | |
| Length | 20 mm | |
| Tripping characteristics | F | |
| Breaking capacity | 1.5 kA | |
| Design | 5 x 20 mm | |
| Enclosure | ceramic tube | |
| Version | microfuse | |
| Rated current | 1.6 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Carton with 10 pieces |
| Customs tariff number | 85361010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
