0040.1101 | SCHURTER

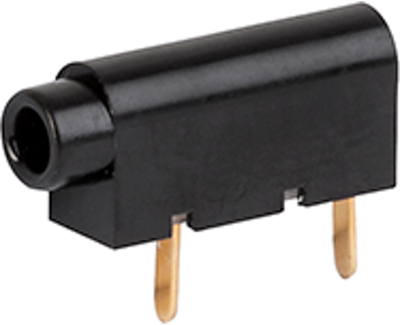

2 mm socket, solder connection, 0.5 mm², black, 0040.1101
Unit Price (€ / pc.)
1.7850 € *
Available: 341 pcs.
Next delivery: 500 pcs. on 2026-06-12
Total Price:
1.79 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7850 €
25 pcs.
1.5232 €
100 pcs.
1.4161 €
200 pcs.
1.3566 €
800 pcs.
1.2376 €
*incl. VAT plus shipping costs
Subject to prior sale
With electrically isolated tinned solder pins; Test voltage: 3.0 kV. Operating temperatures: - 25 to +70 °C.
Type: 0040.1101, black

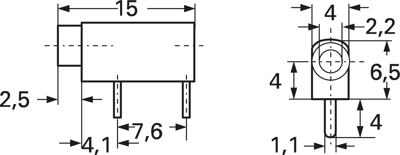

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket | |
| diameter | 2 mm | |
| Colour | black | |
| Connection | solder connection | |
| contact surface | gold-plated | |
| Cable cross-section | 0.5 mm² | |
| Rated current | 10 A | |
| Touch safe | No | |
| Length | 15 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85366990 |
| Original Packaging | Bag with 100 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
