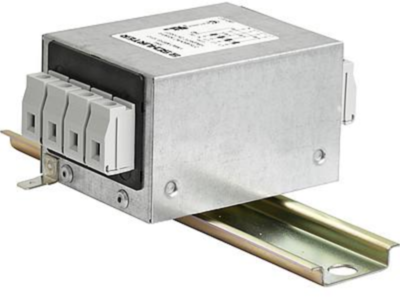

1-stage filter, 50 to 60 Hz, 20 A, 480 VAC, 150 µH, screw connection, FMAD-MRYB-2010

default S
default L
Total price
(40.69 € * / pcs.)
0.00 €
Next delivery: 10 pcs. on 2023-03-17
Quantity
Price per unit*
1 pcs.
40.69 €
3 pcs.
39.01 €
5 pcs.
37.47 €
10 pcs.
36.51 €
*incl. VAT plus shipping costs
Description

Product by SCHURTER at Bürklin Elektronik

3-Phase AC/DC filter, FMAD-MRYB-2010, SCHURTER

The FMAD-MRYB-2010 is a 1-stage filter for 3-phase system with neutral conductor. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

  • 3 phase line filter with standard attenuation

Applications

  • Especially designed for electric switch and control cabinets
  • Suitable for use in equipment
Technical specifications
Connection screw connection
Number of phases 3
Version 1-stage filter
Rated Voltage 480 VAC
Inductance per line 0.15 mH
integrated switch No
Capacity X|Y X2 100 nF, Y2 2.2 nF
max. frequency 0.00006 MHz
max. operating temperature 100 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse No
Rated current 20 A
Show similar products (0)
Logistics
Country of origin SK
Customs tariff number 85363010
MSL MSL 1
Original Packaging Carton with 5 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Variations
1 item with 4 variations
Item description
Price list
Total
Version
Rated Voltage
max. frequency
Capacity X|Y
Number of phases
Connection
min. operating temperature
max. operating temperature
Rated current
min. frequency
1-stage filter, 50 to 60 Hz, 20 A, 480 VAC, 150 µH, screw connection, FMAD-MRYB-2010
Order No.:
 59P9199
Manufacturer:
 SCHURTER
Manufacturer SKU
 FMAD-MRYB-2010
1 pcs.
40.69 €
3 pcs.
39.01 €
5 pcs.
37.47 €
10 pcs.
36.51 €
0.00 € *
Next delivery: 10 pcs. on 2023-03-17
1-stage filter
480 VAC
0.00006 MHz
X2 100 nF, Y2 2.2 nF
3
screw connection
-25 °C
100 °C
20 A
0.00005 MHz
1-stage filter, 50 to 60 Hz, 3 A, 480 VAC, screw connection, FMAD-MRYB-0310
Order No.:
 59P9196
Manufacturer:
 SCHURTER
Manufacturer SKU
 FMAD-MRYB-0310
5 pcs.
54.00 €
10 pcs.
49.63 €
25 pcs.
46.71 €
0.00 € *
Currently not in stock, we will order for you
1-stage filter
480 VAC
0.00006 MHz
3
screw connection
-25 °C
100 °C
3 A
0.00005 MHz
1-stage filter, 50 to 60 Hz, 6 A, 480 VAC, screw connection, FMAD-MRYB-0610
Order No.:
 59P9197
Manufacturer:
 SCHURTER
Manufacturer SKU
 FMAD-MRYB-0610
5 pcs.
54.00 €
10 pcs.
49.63 €
25 pcs.
46.71 €
0.00 € *
Currently not in stock, we will order for you
1-stage filter
480 VAC
0.00006 MHz
3
screw connection
-25 °C
100 °C
6 A
0.00005 MHz
1-stage filter, 50 to 60 Hz, 10 A, 480 VAC, screw connection, FMAD-MRYB-1010
Order No.:
 59P9198
Manufacturer:
 SCHURTER
Manufacturer SKU
 FMAD-MRYB-1010
5 pcs.
54.00 €
10 pcs.
49.63 €
25 pcs.
46.71 €
0.00 € *
Currently not in stock, we will order for you
1-stage filter
480 VAC
0.00006 MHz
3
screw connection
-25 °C
100 °C
10 A
0.00005 MHz
