SCHURTER

FMAD-0934-5010 | SCHURTER

1-stage filter, 50 to 60 Hz, 50 A, 480 VAC, 800 µH, screw connection, FMAD-0934-5010

default S
default L
Total price
(150.25 € * / pcs.)
0.00 €
Next delivery: 6 pcs. on 2023-03-17
Quantity
Price per unit*
1 pcs.
150.25 €
2 pcs.
140.62 €
*incl. VAT plus shipping costs
Description

Product by SCHURTER at Bürklin Elektronik

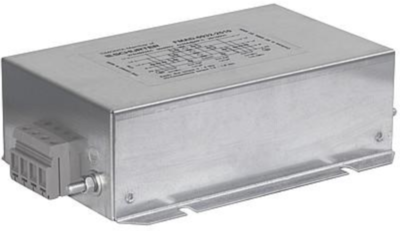

3-Phase AC/DC filter, FMAD-0934-5010, SCHURTER

The FMAD-0934-5010 is a 1-stage filter for 3-phase system with neutral conductor. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

  • Terminals for three phases, neutral conductor and ground

Applications

  • Protection against interference voltage from the mains
  • For standard and industrial application
  • Suitable for use in equipment
Technical specifications
ohmic resistance 2200000 Ω
Connection screw connection
Number of phases 3
Version 1-stage filter
Rated Voltage 480 VAC
Inductance per line 0.8 mH
integrated switch No
max. frequency 0.00006 MHz
max. operating temperature 100 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse No
Rated current 50 A
Show similar products (0)
Logistics
Country of origin CH
Customs tariff number 85363010
MSL MSL 1
Original Packaging Carton with 1 piece
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Variations
1 item with 13 variations
Item description
Price list
Total
ohmic resistance
Version
Rated Voltage
max. frequency
Number of phases
Connection
min. operating temperature
max. operating temperature
Rated current
min. frequency
1-stage filter, 50 to 60 Hz, 25 A, 480 VAC, 2.6 mH, screw connection, FMAD-0932-2510
Order No.:
 59P9187
Manufacturer:
 SCHURTER
Manufacturer SKU
 FMAD-0932-2510
1 pcs.
141.60 €
2 pcs.
132.51 €
0.00 € *
Next delivery: 4 pcs. on 2023-03-03
1-stage filter
480 VAC
0.00006 MHz
3
screw connection
-25 °C
100 °C
25 A
0.00005 MHz
1-stage filter, 50 to 60 Hz, 50 A, 480 VAC, 800 µH, screw connection, FMAD-0934-5010
Order No.:
 59P9189
Manufacturer:
 SCHURTER
Manufacturer SKU
 FMAD-0934-5010
1 pcs.
150.25 €
2 pcs.
140.62 €
0.00 € *
Next delivery: 6 pcs. on 2023-03-17
2200000 Ω
1-stage filter
480 VAC
0.00006 MHz
3
screw connection
-25 °C
100 °C
50 A
0.00005 MHz
1-stage filter, 50 to 60 Hz, 16 A, 480 VAC, 5 mH, screw connection, FMAD-0932-1610
Order No.:
 59P9186
Manufacturer:
 SCHURTER
Manufacturer SKU
 FMAD-0932-1610
1 pcs.
94.52 €
2 pcs.
90.80 €
3 pcs.
88.46 €
94.52 € *
Available: 2 pcs.
Next delivery: 1 pcs. on 2023-04-11
1-stage filter
480 VAC
0.00006 MHz
3
screw connection
-25 °C
100 °C
16 A
0.00005 MHz
1-stage filter, 50 to 60 Hz, 36 A, 480 VAC, 1.8 mH, screw connection, FMAD-0934-3610
Order No.:
 59P9188
Manufacturer:
 SCHURTER
Manufacturer SKU
 FMAD-0934-3610
1 pcs.
146.33 €
2 pcs.
136.95 €
0.00 € *
Next delivery: 1 pcs. on 2023-02-10
2200000 Ω
1-stage filter
480 VAC
0.00006 MHz
3
screw connection
-25 °C
100 °C
36 A
0.00005 MHz
1-stage filter, 50 to 60 Hz, 64 A, 480 VAC, 600 µH, screw connection, FMAD-0953-6410
Order No.:
 59P9191
Manufacturer:
 SCHURTER
Manufacturer SKU
 FMAD-0953-6410
1 pcs.
249.15 €
5 pcs.
234.49 €
10 pcs.
219.84 €
0.00 € *
Currently not in stock, we will order for you
2200000 Ω
1-stage filter
480 VAC
0.00006 MHz
3
screw connection
-25 °C
100 °C
64 A
0.00005 MHz
1-stage filter, 50 to 60 Hz, 550 A, 480 VAC, 200 µH, screw connection, FMAD-09KQ-H650
Order No.:
 59P9195
Manufacturer:
 SCHURTER
Manufacturer SKU
 FMAD-09KQ-H650
1 pcs.
1,727.58 €
5 pcs.
1,625.96 €
10 pcs.
1,524.35 €
0.00 € *
Currently not in stock, we will order for you
2200000 Ω
1-stage filter
480 VAC
0.00006 MHz
3
screw connection
-25 °C
100 °C
550 A
0.00005 MHz
1-stage filter, 50 to 60 Hz, 80 A, 480 VAC, 900 µH, screw connection, FMAD-0937-8010
Order No.:
 59P9190
Manufacturer:
 SCHURTER
Manufacturer SKU
 FMAD-0937-8010
1 pcs.
428.84 €
5 pcs.
403.61 €
10 pcs.
378.40 €
0.00 € *
Currently not in stock, we will order for you
2200000 Ω
1-stage filter
480 VAC
0.00006 MHz
3
screw connection
-25 °C
100 °C
80 A
0.00005 MHz
1-stage filter, 50 to 60 Hz, 250 A, 480 VAC, 200 µH, screw connection, FMAD-0956-H310
Order No.:
 59P9194
Manufacturer:
 SCHURTER
Manufacturer SKU
 FMAD-0956-H310
1 pcs.
1,804.62 €
5 pcs.
1,698.46 €
10 pcs.
1,592.32 €
0.00 € *
Currently not in stock, we will order for you
2200000 Ω
1-stage filter
480 VAC
0.00006 MHz
3
screw connection
-25 °C
100 °C
250 A
0.00005 MHz
1-stage filter, 50 to 60 Hz, 6 A, 480 VAC, 9 mH, screw connection, FMAD-0924-0610
Order No.:
 59P9183
Manufacturer:
 SCHURTER
Manufacturer SKU
 FMAD-0924-0610
2 pcs.
88.21 €
6 pcs.
83.03 €
10 pcs.
77.85 €
0.00 € *
Currently not in stock, we will order for you
1-stage filter
480 VAC
0.00006 MHz
3
screw connection
-25 °C
100 °C
6 A
0.00005 MHz
1-stage filter, 50 to 60 Hz, 180 A, 480 VAC, 250 µH, screw connection, FMAD-0955-H210
Order No.:
 59P9193
Manufacturer:
 SCHURTER
Manufacturer SKU
 FMAD-0955-H210
1 pcs.
1,421.10 €
5 pcs.
1,337.50 €
10 pcs.
1,253.91 €
0.00 € *
Currently not in stock, we will order for you
2200000 Ω
1-stage filter
480 VAC
0.00006 MHz
3
screw connection
-25 °C
100 °C
180 A
0.00005 MHz
1-stage filter, 50 to 60 Hz, 8 A, 480 VAC, 8 mH, screw connection, FMAD-0931-0810
Order No.:
 59P9184
Manufacturer:
 SCHURTER
Manufacturer SKU
 FMAD-0931-0810
1 pcs.
97.22 €
5 pcs.
91.51 €
10 pcs.
85.78 €
0.00 € *
Currently not in stock, we will order for you
1-stage filter
480 VAC
0.00006 MHz
3
screw connection
-25 °C
100 °C
8 A
0.00005 MHz
1-stage filter, 50 to 60 Hz, 110 A, 480 VAC, 500 µH, screw connection, FMAD-0954-H110
Order No.:
 59P9192
Manufacturer:
 SCHURTER
Manufacturer SKU
 FMAD-0954-H110
1 pcs.
426.57 €
5 pcs.
401.48 €
10 pcs.
376.39 €
0.00 € *
Currently not in stock, we will order for you
2200000 Ω
1-stage filter
480 VAC
0.00006 MHz
3
screw connection
-25 °C
100 °C
110 A
0.00005 MHz
Suppressor filter, Screw connection, 16 A, 480 VAC, FMAD-0931-1610
Order No.:
 59P9185
Manufacturer:
 SCHURTER
Manufacturer SKU
 FMAD-0931-1610
1 pcs.
87.51 €
0.00 € *
Currently not in stock, we will order for you
1-stage filter
480 VAC
0.00006 MHz
1
screw connection
-25 °C
100 °C
16 A
0.00005 MHz
