SCHURTER

FMAC-0A40-2513 | SCHURTER

1-stage filter, 50 to 60 Hz, 25 A, 550 VAC, 200 µH, screw connection, FMAC-0A40-2513

default S
default L
Total price
(230.48 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
1 pcs.
230.48 €
*incl. VAT plus shipping costs
Description

Product by SCHURTER at Bürklin Elektronik

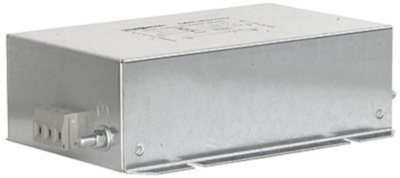

3-Phase AC/DC filter, FMAC-0A40-2513, SCHURTER

The FMAC-0A40-2513 is a ultra compact and efficient 1-stage filter in ECO design for 3-phase system. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

  • Compact design
  • Standard versions include insulated safety screw terminals
  • Enhancement of the system efficiency

Applications

  • Motors can be fed through long cables
  • Reduces the voltage rise rate of inverter output voltage
Technical specifications
Connection screw connection
Number of phases 3
Version 1-stage filter
Rated Voltage 550 VAC
Inductance per line 0.2 mH
integrated switch No
Capacity X|Y X1 4.7 nF
max. frequency 0.00006 MHz
max. operating temperature 100 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse No
Rated current 25 A
Show similar products (0)
Logistics
Country of origin CH
Customs tariff number 85363010
MSL MSL 1
Original Packaging Carton with 1 piece
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Variations
1 item with 4 variations
Item description
Price list
Total
Version
Rated Voltage
Capacity X|Y
max. frequency
Number of phases
Connection
min. operating temperature
max. operating temperature
Rated current
min. frequency
1-stage filter, 50 to 60 Hz, 25 A, 550 VAC, 200 µH, screw connection, FMAC-0A40-2513
Order No.:
 59P9170
Manufacturer:
 SCHURTER
Manufacturer SKU
 FMAC-0A40-2513
1 pcs.
230.48 €
0.00 € *
Currently not in stock, we will order for you
1-stage filter
550 VAC
X1 4.7 nF
0.00006 MHz
3
screw connection
-25 °C
100 °C
25 A
0.00005 MHz
1-stage filter, 50 to 60 Hz, 16 A, 550 VAC, 200 µH, screw connection, FMAC-0A27-1613
Order No.:
 59P9168
Manufacturer:
 SCHURTER
Manufacturer SKU
 FMAC-0A27-1613
1 pcs.
147.48 €
0.00 € *
Currently not in stock, we will order for you
1-stage filter
550 VAC
X1 4.7 nF
0.00006 MHz
3
screw connection
-25 °C
100 °C
16 A
0.00005 MHz
1-stage filter, 50 to 60 Hz, 32 A, 550 VAC, 200 µH, screw connection, FMAC-0A38-3213
Order No.:
 59P9169
Manufacturer:
 SCHURTER
Manufacturer SKU
 FMAC-0A38-3213
1 pcs.
321.13 €
0.00 € *
Currently not in stock, we will order for you
1-stage filter
550 VAC
X1 4.7 nF
0.00006 MHz
3
screw connection
-25 °C
100 °C
32 A
0.00005 MHz
1-stage filter, 50 to 60 Hz, 8 A, 550 VAC, 200 µH, screw connection, FMAC-0A24-0813
Order No.:
 59P9167
Manufacturer:
 SCHURTER
Manufacturer SKU
 FMAC-0A24-0813
2 pcs.
97.66 €
0.00 € *
Currently not in stock, we will order for you
1-stage filter
550 VAC
X1 4.7 nF
0.00006 MHz
3
screw connection
-25 °C
100 °C
8 A
0.00005 MHz
*incl. VAT plus shipping costs
