SCHURTER

EC12.1131.001 | SCHURTER

IEC plug C20, 50 to 60 Hz, 20 A, 250 VAC, 300 µH, faston plug 6.3 mm, EC12.1131.001

default S
default L
Total price
(31.46 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
40 pcs.
31.46 €
*incl. VAT plus shipping costs
Description

Product by SCHURTER at Bürklin Elektronik

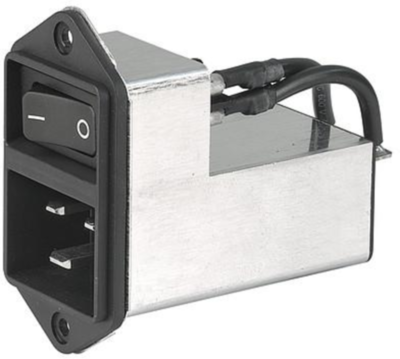

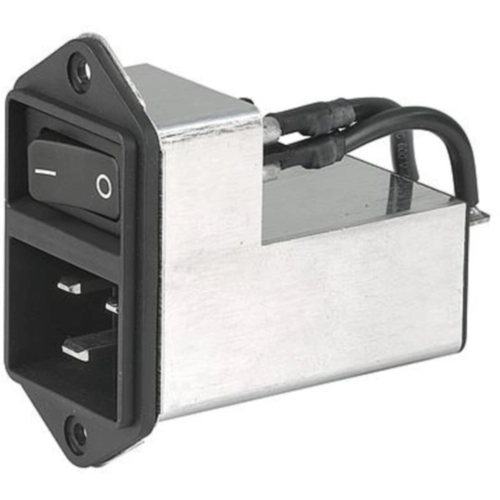

IEC appliance inlet, EC12.1131.001, SCHURTER

The EC12.1131.001 is a power entry module with line filter. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

  • Line switch non-illuminated
  • With EMC-shield
  • Ideal for application with high transient loads
  • Suitable for use in medical equipment
  • Screw-on mounting front side
Technical specifications
ohmic resistance 1000000 Ω
Connection faston plug 6.3 mm
Version IEC plug C20
Rated Voltage 250 VAC
Inductance per line 0.3 mH
integrated switch Yes
max. frequency 0.00006 MHz
max. operating temperature 85 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse No
Rated current 20 A
Show similar products (0)
Logistics
Country of origin SK
Customs tariff number 85363010
MSL MSL 1
Original Packaging Carton with 20 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Variations
1 item with 9 variations
Item description
Price list
Total
ohmic resistance
Version
Rated Voltage
max. frequency
Capacity X|Y
Number of phases
Connection
min. operating temperature
max. operating temperature
Rated current
min. frequency
IEC plug C20, 50 to 60 Hz, 16 A, 250 VAC, 600 µH, faston plug 6.3 mm, EC12.2101.001
Order No.:
 75D3052
Manufacturer:
 SCHURTER
Manufacturer SKU
 EC12.2101.001
1 pcs.
30.81 €
3 pcs.
29.50 €
5 pcs.
28.29 €
10 pcs.
27.17 €
0.00 € *
Next delivery: 32 pcs. on 2023-05-12
1000000 Ω
IEC plug C20
250 VAC
0.00006 MHz
X2 100 nF
1
faston plug 6.3 mm
-25 °C
85 °C
16 A
0.00005 MHz
IEC plug C20, 50 to 60 Hz, 20 A, 250 VAC, 300 µH, faston plug 6.3 mm, EC12.1131.001
Order No.:
 59P9116
Manufacturer:
 SCHURTER
Manufacturer SKU
 EC12.1131.001
40 pcs.
31.46 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC plug C20
250 VAC
0.00006 MHz
faston plug 6.3 mm
-25 °C
85 °C
20 A
0.00005 MHz
IEC inlet filter C20, 50 to 60 Hz, 20 A, 250 VAC, faston plug 6.3 mm, EC12.1101.002
Order No.:
 75D3094
Manufacturer:
 SCHURTER
Manufacturer SKU
 EC12.1101.002
20 pcs.
28.38 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C20
250 VAC
0.00006 MHz
X 100 nF
faston plug 6.3 mm
-25 °C
85 °C
20 A
0.00005 MHz
IEC plug C20, 50 to 60 Hz, 16 A, 250 VAC, 600 µH, faston plug 6.3 mm, EC12.2101.001.21
Order No.:
 59P9118
Manufacturer:
 SCHURTER
Manufacturer SKU
 EC12.2101.001.21
40 pcs.
30.92 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC plug C20
250 VAC
0.00006 MHz
faston plug 6.3 mm
-25 °C
85 °C
16 A
0.00005 MHz
IEC inlet filter C20, 50 to 60 Hz, 12 A, 250 VAC, faston plug 6.3 mm, EC12.3101.001.21
Order No.:
 75D3096
Manufacturer:
 SCHURTER
Manufacturer SKU
 EC12.3101.001.21
20 pcs.
29.08 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C20
250 VAC
0.00006 MHz
X 100 nF, Y2 2.2 nF
faston plug 6.3 mm
-25 °C
85 °C
12 A
0.00005 MHz
IEC plug C20, 50 to 60 Hz, 20 A, 250 VAC, 300 µH, faston plug 6.3 mm, EC12.1101.001
Order No.:
 59P9115
Manufacturer:
 SCHURTER
Manufacturer SKU
 EC12.1101.001
40 pcs.
30.43 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC plug C20
250 VAC
0.00006 MHz
X2 100 nF, Y2 2.2 nF
faston plug 6.3 mm
-25 °C
85 °C
20 A
0.00005 MHz
IEC plug C20, 50 to 60 Hz, 12 A, 250 VAC, 800 µH, faston plug 6.3 mm, EC12.3101.001
Order No.:
 59P9123
Manufacturer:
 SCHURTER
Manufacturer SKU
 EC12.3101.001
40 pcs.
29.67 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC plug C20
250 VAC
0.00006 MHz
X2 100 nF, Y2 2.2 nF
faston plug 6.3 mm
-25 °C
85 °C
12 A
0.00005 MHz
IEC plug C20, 50 to 60 Hz, 16 A, 250 VAC, 600 µH, faston plug 6.3 mm, EC12.2101.002
Order No.:
 59P9119
Manufacturer:
 SCHURTER
Manufacturer SKU
 EC12.2101.002
40 pcs.
28.10 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC plug C20
250 VAC
0.00006 MHz
X2 100 nF, Y2 2.2 nF
faston plug 6.3 mm
-25 °C
85 °C
16 A
0.00005 MHz
IEC plug C20, 50 to 60 Hz, 12 A, 250 VAC, 800 µH, faston plug 6.3 mm, EC12.3101.002
Order No.:
 59P9124
Manufacturer:
 SCHURTER
Manufacturer SKU
 EC12.3101.002
40 pcs.
28.10 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC plug C20
250 VAC
0.00006 MHz
X2 100 nF, Y2 2.2 nF
faston plug 6.3 mm
-25 °C
85 °C
12 A
0.00005 MHz
*incl. VAT plus shipping costs
