SCHURTER

DD22.4121.1111 | SCHURTER

IEC plug C14, 50 to 60 Hz, 4 A, 250 VAC, 1.5 mH, faston plug 6.3 mm, DD22.4121.1111

default S
default L
Total price
(26.01 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
40 pcs.
26.01 €
*incl. VAT plus shipping costs
Description

Product by SCHURTER at Bürklin Elektronik

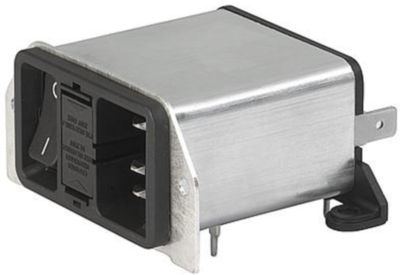

IEC appliance inlet, DD22.4121.1111, SCHURTER

The DD22.4121.1111 is a power entry module with line filter. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

  • Most compact power entry module
  • Attractive flat design
  • Switch for highest inrush current
  • V-Lock cord retaining
  • Ultra-compact design
  • Ideal for application with high transient loads
  • Suitable for use in medical equipment
Technical specifications
ohmic resistance 1000000 Ω
Connection faston plug 6.3 mm
Version IEC plug C14
Rated Voltage 250 VAC
Inductance per line 1.5 mH
integrated switch Yes
Capacity X|Y X2 100 nF, Y2 2.2 nF
max. frequency 0.00006 MHz
max. operating temperature 85 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse Yes
Rated current 4 A
Show similar products (0)
Logistics
Country of origin SK
Customs tariff number 85363010
MSL MSL 1
Original Packaging Carton with 20 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
1 item with 4 variations
Item description
Price list
Total
ohmic resistance
Version
Rated Voltage
Capacity X|Y
max. frequency
Connection
min. operating temperature
max. operating temperature
Rated current
min. frequency
IEC plug C14, 50 to 60 Hz, 4 A, 250 VAC, 1.5 mH, faston plug 6.3 mm, DD22.4121.1111
Order No.:
 59P8785
Manufacturer:
 SCHURTER
Manufacturer SKU
 DD22.4121.1111
40 pcs.
26.01 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC plug C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.00006 MHz
faston plug 6.3 mm
-25 °C
85 °C
4 A
0.00005 MHz
IEC plug C14, 50 to 60 Hz, 2 A, 250 VAC, 4 mH, faston plug 6.3 mm, DD22.2121.1111
Order No.:
 59P8783
Manufacturer:
 SCHURTER
Manufacturer SKU
 DD22.2121.1111
40 pcs.
26.01 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC plug C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.00006 MHz
faston plug 6.3 mm
-25 °C
85 °C
2 A
0.00005 MHz
IEC plug C14, 50 to 60 Hz, 6 A, 250 VAC, 800 µH, faston plug 6.3 mm, DD22.6121.1111
Order No.:
 59P8787
Manufacturer:
 SCHURTER
Manufacturer SKU
 DD22.6121.1111
40 pcs.
26.01 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC plug C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.00006 MHz
faston plug 6.3 mm
-25 °C
85 °C
6 A
0.00005 MHz
IEC plug C14, 50 to 60 Hz, 10 A, 250 VAC, 300 µH, faston plug 6.3 mm, DD22.9121.1111
Order No.:
 59P8790
Manufacturer:
 SCHURTER
Manufacturer SKU
 DD22.9121.1111
40 pcs.
26.01 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC plug C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.00006 MHz
faston plug 6.3 mm
-25 °C
85 °C
10 A
0.00005 MHz
