CD34.1101.151 | SCHURTER

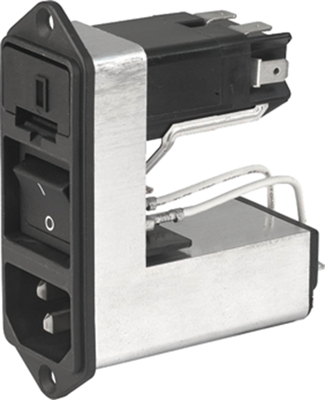

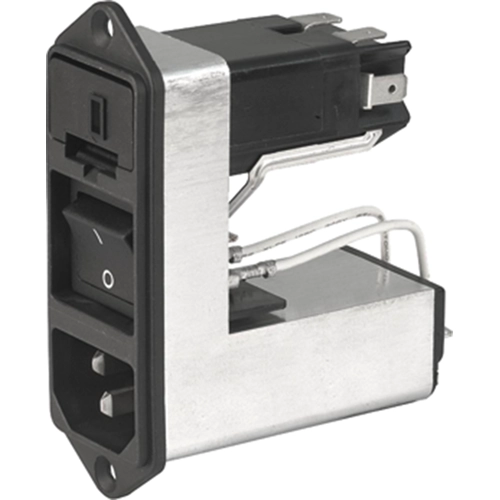

IEC plug C14, 50 to 60 Hz, 4 A, 250 VAC, 1.5 mH, faston plug 4.8 mm, CD34.1101.151

default S
front S
default L
front L
Total price
(27.57 € * / pcs.)
0.00 €
Next delivery: 5 pcs. on 2022-12-23
Quantity
Price per unit*
1 pcs.
27.57 €
3 pcs.
26.41 €
5 pcs.
25.30 €
10 pcs.
24.31 €
*incl. VAT plus shipping costs
Description

Product by SCHURTER at Bürklin Elektronik

EMC filters with add-on function combination series CD, type Schurter CD.

Consists of the filter, an IEC appliance connector with protection class 1, a touch-proof G fuse holder 5.0 x 20 mm or US-type fuse holder 6.3 x 32 mm, with or without voltage selector. Double-pole power On/Off switch without illumination. Vertical activation; Color: black. Rated voltage: 250 VAC/50-60 Hz. Capacitance: 0.068 µF (X), 2200 pF (Y). Connections: 4.8 mm tab terminals. Certifications: ENEC 10, VDE, UL.

Combined elements for double-pole fuse holder cartridges without voltage selector, type CD.

Consist of the described combination of functions, but without fuse holder cartridge.

Technical attributes (type, rated current, rated inductance): CD34.1101.151, 4.0 A, 2 x 1.5 mH

Technical specifications
Connection faston plug 4.8 mm
Number of phases 1
Version IEC plug C14
Rated Voltage 250 VAC
Inductance per line 1.5 mH
integrated switch Yes
Capacity X|Y X2 68 nF, Y2 2.2 nF
max. frequency 0.00006 MHz
max. operating temperature 85 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse Yes
Rated current 4 A
Show similar products (0)
Logistics
Country of origin SK
Customs tariff number 85363010
Original Packaging Carton with 10 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Accessory
Fuse Drawer 10A 250VAC
Order No.:
 75D3080
Manufacturer:
 SCHURTER
Manufacturer SKU
 4303.2401
1 pcs.
3.13 €
10 pcs.
2.84 €
50 pcs.
2.63 €
100 pcs.
2.42 €
3.13 € *
Available: 431 pcs.
Next delivery: 50 pcs. on 2023-02-03
*incl. VAT plus shipping costs
Variations
1 item with 5 variations
Item description
Price list
Total
Version
Rated Voltage
Capacity X|Y
max. frequency
Number of phases
Connection
min. operating temperature
max. operating temperature
Rated current
min. frequency
IEC plug C14, 50 to 60 Hz, 6 A, 250 VAC, 800 µH, faston plug 4.8 mm, CD44.1101.151
Order No.:
 75D3126
Manufacturer:
 SCHURTER
Manufacturer SKU
 CD44.1101.151
1 pcs.
26.26 €
3 pcs.
25.14 €
5 pcs.
24.10 €
10 pcs.
23.16 €
0.00 € *
Next delivery: 34 pcs. on 2023-02-03
IEC plug C14
250 VAC
X2 68 nF, Y2 2.2 nF
0.00006 MHz
1
faston plug 4.8 mm
-25 °C
85 °C
6 A
0.00005 MHz
IEC plug C14, 50 to 60 Hz, 2 A, 250 VAC, 4 mH, faston plug 4.8 mm, CD24.1101.151
Order No.:
 75D3122
Manufacturer:
 SCHURTER
Manufacturer SKU
 CD24.1101.151
1 pcs.
26.26 €
3 pcs.
25.14 €
5 pcs.
24.10 €
10 pcs.
23.16 €
0.00 € *
Next delivery: 60 pcs. on 2023-02-24
IEC plug C14
250 VAC
X2 68 nF, Y2 2.2 nF
0.00006 MHz
1
faston plug 4.8 mm
-25 °C
85 °C
2 A
0.00005 MHz
IEC plug C14, 50 to 60 Hz, 1 A, 250 VAC, 10 mH, faston plug 4.8 mm, CD14.1101.151
Order No.:
 75D3120
Manufacturer:
 SCHURTER
Manufacturer SKU
 CD14.1101.151
1 pcs.
26.26 €
3 pcs.
25.14 €
5 pcs.
24.10 €
10 pcs.
23.16 €
0.00 € *
Next delivery: 20 pcs. on 2023-04-11
IEC plug C14
250 VAC
X2 68 nF, Y2 2.2 nF
0.00006 MHz
1
faston plug 4.8 mm
-25 °C
85 °C
1 A
0.00005 MHz
IEC plug C14, 50 to 60 Hz, 4 A, 250 VAC, 1.5 mH, faston plug 4.8 mm, CD34.1101.151
Order No.:
 75D3124
Manufacturer:
 SCHURTER
Manufacturer SKU
 CD34.1101.151
1 pcs.
27.57 €
3 pcs.
26.41 €
5 pcs.
25.30 €
10 pcs.
24.31 €
0.00 € *
Next delivery: 5 pcs. on 2022-12-23
IEC plug C14
250 VAC
X2 68 nF, Y2 2.2 nF
0.00006 MHz
1
faston plug 4.8 mm
-25 °C
85 °C
4 A
0.00005 MHz
IEC plug C14, 50 to 60 Hz, 10 A, 250 VAC, 300 µH, faston plug 4.8 mm, CD64.1101.151
Order No.:
 59P8566
Manufacturer:
 SCHURTER
Manufacturer SKU
 CD64.1101.151
1 pcs.
26.26 €
3 pcs.
25.14 €
5 pcs.
24.10 €
10 pcs.
23.16 €
0.00 € *
Next delivery: 20 pcs. on 2023-08-25
IEC plug C14
250 VAC
X2 68 nF, Y2 2.2 nF
0.00006 MHz
1
faston plug 4.8 mm
-25 °C
85 °C
10 A
0.00005 MHz
