8843.8923.1 | SCHURTER
IEC plug C14, 50 to 60 Hz, 10 A, 250 VAC, 0.4 mH, faston plug 6.3 mm, 8843.8923.1
Unit Price (€ / pc.)
62.3679 € *
Standard delivery time from the manufacturer is: 10 Weeks

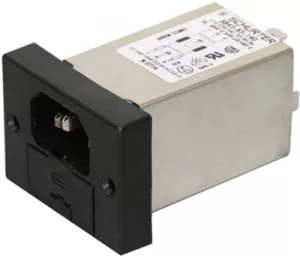

IEC appliance inlet, 8843.8923.1, SCHURTER
The 8843.8923.1 is a power entry module without line filter. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- With device fuse holder and screw cap
- Suitable for use in equipment
- With fuse holder 2-pole
Technical specifications
| max. frequency | 60 Hz | |
| Rated current | 10 A | |
| Inductance per line | 0.4 mH | |
| Capacity X|Y | X2 47 nF, Y 2.2 nF | |
| With fuse | Yes | |
| Version | IEC plug C14 | |
| min. operating temperature | -25 °C | |
| Connection | faston plug 6.3 mm | |
| Rated Voltage | 250 VAC | |
| max. operating temperature | 70 °C | |
| min. frequency | 50 Hz |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85363010 |
| MSL | MSL 1 |
| Original Packaging | Carton with 10 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
