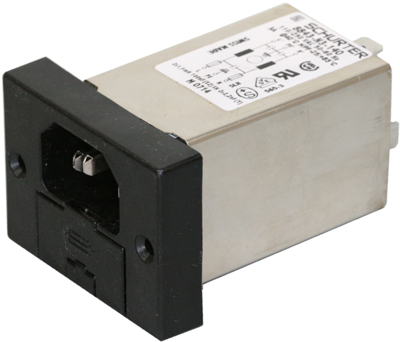

IEC plug C14/C18, 50 to 60 Hz, 6 A, 250 VAC, 0.8 mH, faston plug 6.3 mm, 8843.8623.1

default S
front S
default L
front L
Total price
(56.37 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
1 pcs.
56.37 €
3 pcs.
54.04 €
5 pcs.
51.92 €
10 pcs.
50.58 €
*incl. VAT plus shipping costs
Description

Product by SCHURTER at Bürklin Elektronik

EMC filters with add-on function combination series 8843, type Schurter 8843.

Consists of the filter, 2 receptacles for fuse holder inserts (5 x 20 mm) and an appliance connector for connection in locations with temperatures to 70 °C; Rated voltage: 250 VAC. Rated capacitances: X2 = 47 nF, Y = 2.2 nF. 6.3 mm tab terminals, solderable. Test logos: VDE, UL, CSA. . The fuse holder cartridges are available on separate order.

Technical attributes (type, rated current, rated inductance): 8843.8623, 6.0 A, 2 x 0.8 mH

Technical specifications
Connection faston plug 6.3 mm
Number of phases 1
Version IEC plug C14/C18
Rated Voltage 250 VAC
Inductance per line 0.8 mH
integrated switch No
Capacity X|Y X2 47 nF, Y 2.2 nF
max. frequency 0.00006 MHz
max. operating temperature 70 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse Yes
Rated current 6 A
Show similar products (0)
Logistics
Country of origin CH
Customs tariff number 85363010
Original Packaging Carton with 10 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Accessory
Fuse Drawer 10A 250V
Order No.:
 75D2990
Manufacturer:
 SCHURTER
Manufacturer SKU
 8843.0902
3 pcs.
2.13 €
15 pcs.
1.94 €
75 pcs.
1.77 €
400 pcs.
1.70 €
800 pcs.
1.63 €
6.39 € *
Available: 30 pcs.
*incl. VAT plus shipping costs
Variations
1 item with 4 variations
Item description
Price list
Total
Version
Rated Voltage
Capacity X|Y
max. frequency
Number of phases
Connection
min. operating temperature
max. operating temperature
Rated current
min. frequency
IEC plug C14/C18, 50 to 60 Hz, 6 A, 250 VAC, 0.8 mH, faston plug 6.3 mm, 8843.8623.1
Order No.:
 75D2984
Manufacturer:
 SCHURTER
Manufacturer SKU
 8843.8623.1
1 pcs.
56.37 €
3 pcs.
54.04 €
5 pcs.
51.92 €
10 pcs.
50.58 €
0.00 € *
Currently not in stock, we will order for you
IEC plug C14/C18
250 VAC
X2 47 nF, Y 2.2 nF
0.00006 MHz
1
faston plug 6.3 mm
-25 °C
70 °C
6 A
0.00005 MHz
IEC plug C14/C18, 50 to 60 Hz, 10 A, 250 VAC, 0.4 mH, faston plug 6.3 mm, 8843.8923.1
Order No.:
 59P8515
Manufacturer:
 SCHURTER
Manufacturer SKU
 8843.8923.1
20 pcs.
56.95 €
0.00 € *
Currently not in stock, we will order for you
IEC plug C14/C18
250 VAC
X2 47 nF, Y 2.2 nF
0.00006 MHz
faston plug 6.3 mm
-25 °C
70 °C
10 A
0.00005 MHz
IEC plug C14/C18, 50 to 60 Hz, 3 A, 250 VAC, 1.6 mH, faston plug 6.3 mm, 8843.8323.1
Order No.:
 75D2982
Manufacturer:
 SCHURTER
Manufacturer SKU
 8843.8323.1
20 pcs.
56.95 €
0.00 € *
Currently not in stock, we will order for you
IEC plug C14/C18
250 VAC
X2 47 nF, Y 2.2 nF
0.00006 MHz
1
faston plug 6.3 mm
-25 °C
70 °C
3 A
0.00005 MHz
IEC plug C14/C18, 50 to 60 Hz, 1 A, 250 VAC, 11 mH, faston plug 6.3 mm, 8843.8123.1
Order No.:
 75D2980
Manufacturer:
 SCHURTER
Manufacturer SKU
 8843.8123.1
20 pcs.
56.95 €
0.00 € *
Currently not in stock, we will order for you
IEC plug C14/C18
250 VAC
X2 47 nF, Y 2.2 nF
0.00006 MHz
1
faston plug 6.3 mm
-25 °C
70 °C
1 A
0.00005 MHz
