SCHURTER

5707.0603.312.01 | SCHURTER

Power filter, 50 to 60 Hz, 6 A, 250 VAC, 1.2 W, 800 µH, faston plug 6.3 mm, 5707.0603.312.01

default S
default L
Total price
(27.89 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
20 pcs.
27.89 €
*incl. VAT plus shipping costs
Description

Product by SCHURTER at Bürklin Elektronik

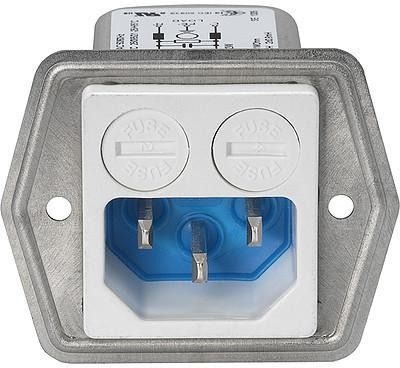

IEC appliance inlet, 5707.0603.312.01, SCHURTER

The 5707.0603.312.01 is a power entry module with line filter. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

  • Sealed power entry module
  • Strong in Design and Safety
  • Screw type fuse carrier, slotted
  • With EMC-shield
  • Suitable for use in medical equipment
  • IP 65 protection to the appliance
  • IP 54 protection to the cord connection
Technical specifications
ohmic resistance 1000000 Ω
Connection faston plug 6.3 mm
Version Power filter
Rated Voltage 250 VAC
Inductance per line 0.8 mH
integrated switch No
Capacity X|Y X2 100 nF
Power 1.2 W
max. frequency 0.00006 MHz
max. operating temperature 85 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse Yes
Rated current 6 A
Show similar products (0)
Logistics
Country of origin CZ
Customs tariff number 85363010
MSL MSL 1
Original Packaging Carton with 10 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Variations
1 item with 3 variations
Item description
Price list
Total
ohmic resistance
Version
Rated Voltage
max. frequency
Capacity X|Y
Connection
min. operating temperature
max. operating temperature
Rated current
min. frequency
Power
Power filter, 50 to 60 Hz, 6 A, 250 VAC, 1.2 W, 800 µH, faston plug 6.3 mm, 5707.0603.312.01
Order No.:
 59P7481
Manufacturer:
 SCHURTER
Manufacturer SKU
 5707.0603.312.01
20 pcs.
27.89 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
Power filter
250 VAC
0.00006 MHz
X2 100 nF
faston plug 6.3 mm
-25 °C
85 °C
6 A
0.00005 MHz
1.2 W
Power filter, 50 to 60 Hz, 4 A, 250 VAC, 2 mH, faston plug 6.3 mm, 5707.0405.312.01
Order No.:
 59P7474
Manufacturer:
 SCHURTER
Manufacturer SKU
 5707.0405.312.01
20 pcs.
27.89 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
Power filter
250 VAC
0.00006 MHz
faston plug 6.3 mm
-25 °C
85 °C
4 A
0.00005 MHz
Power filter, 50 to 60 Hz, 2 A, 250 VAC, 1.2 W, 5.2 mH, faston plug 6.3 mm, 5707.0203.312.01
Order No.:
 59P7457
Manufacturer:
 SCHURTER
Manufacturer SKU
 5707.0203.312.01
20 pcs.
27.89 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
Power filter
250 VAC
0.00006 MHz
X2 100 nF
faston plug 6.3 mm
-25 °C
85 °C
2 A
0.00005 MHz
1.2 W
*incl. VAT plus shipping costs
