5500.2225 | SCHURTER

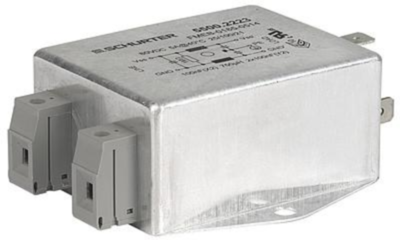

DC filter, 15 A, 80 V (DC), 80 V, 100 µH, screw connection, 5500.2225
Unit Price (€ / pc.)
44.7083 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
44.71 € *
Price list
Quantity
Price per unit*
1 pcs.
44.7083 €
5 pcs.
41.5786 €
10 pcs.
38.6631 €
25 pcs.
35.5691 €
*incl. VAT plus shipping costs
Subject to prior sale
1-Phase line filter, 5500.2225, SCHURTER
The 5500.2225 is an DC-filter, single pole. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Optimized for DC supplied application
- Suitable for use in equipment
- Standard attenuation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 80 V | |
| Number of phases | 1 | |
| integrated switch | No | |
| Rated current | 15 A | |
| Inductance per line | 100 µH | |
| Capacity X|Y | X2 100 nF, Y2 100 nF | |
| With fuse | No | |
| Version | DC filter | |
| min. operating temperature | -25 °C | |
| Connection | screw connection | |
| Rated Voltage | 80 V | |
| max. operating temperature | 100 °C | |
| ohmic resistance | 1 MΩ |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SK |
| Customs tariff number | 85363010 |
| MSL | MSL 1 |
| Original Packaging | Carton with 10 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
