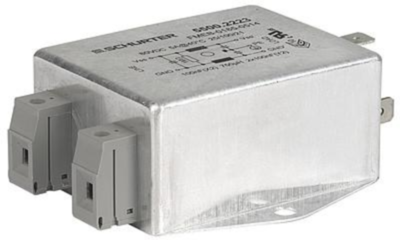

DC filter, 5 A, 80 V (DC), 80 V, 750 µH, Plug-in/Screw connection, 5500.2223

default S
default L
Total price
(27.51 € * / pcs.)
27.51 €
Available: 17 pcs.
Quantity
Price per unit*
1 pcs.
27.51 €
3 pcs.
26.33 €
5 pcs.
25.25 €
10 pcs.
24.26 €
*incl. VAT plus shipping costs
Show 12 variants
Description

Product by SCHURTER at Bürklin Elektronik

1-Phase line filter, 5500.2223, SCHURTER

The 5500.2223 is an DC-filter, single pole. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

  • Optimized for DC supplied application
  • Suitable for use in equipment
  • Standard attenuation
Technical specifications
ohmic resistance 1000000 Ω
Connection Plug-in/Screw connection
Number of phases 1
Version DC filter
Rated Voltage 80 V
Inductance per line 0.75 mH
integrated switch No
Capacity X|Y X2 100 nF, Y2 100 nF
max. operating temperature 100 °C
min. operating temperature -25 °C
With fuse No
Rated voltage (DC) 80 V
Rated current 5 A
Show similar products (0)
Logistics
Country of origin SK
Customs tariff number 85363010
MSL MSL 1
Original Packaging Carton with 10 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Variations
1 item with 12 variations
Item description
Price list
Total
ohmic resistance
Version
Capacity X|Y
min. operating temperature
Rated Voltage
max. frequency
Number of phases
Connection
Rated voltage (DC)
max. operating temperature
Rated current
min. frequency
AC filter, 50 to 60 Hz, 6 A, 250 VAC, 800 µH, faston plug 6.3 mm, 5500.2061
Order No.:
 59P7244
Manufacturer:
 SCHURTER
Manufacturer SKU
 5500.2061
1 pcs.
20.35 €
5 pcs.
19.47 €
10 pcs.
18.92 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
AC filter
X 100 nF, Y1 22 nF, Y2 1 nF
-25 °C
250 VAC
0.00006 MHz
1
faston plug 6.3 mm
100 °C
6 A
0.00005 MHz
AC filter, 50 to 60 Hz, 10 A, 250 VAC, 400 µH, faston plug 6.3 mm, 5500.2063
Order No.:
 59P7246
Manufacturer:
 SCHURTER
Manufacturer SKU
 5500.2063
10 pcs.
20.73 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
AC filter
X 100 nF, Y1 22 nF, Y2 1 nF
-25 °C
250 VAC
0.00006 MHz
1
faston plug 6.3 mm
100 °C
10 A
0.00005 MHz
DC filter, 5 A, 80 V (DC), 80 V, 750 µH, Plug-in/Screw connection, 5500.2223
Order No.:
 59P7341
Manufacturer:
 SCHURTER
Manufacturer SKU
 5500.2223
1 pcs.
27.51 €
3 pcs.
26.33 €
5 pcs.
25.25 €
10 pcs.
24.26 €
27.51 € *
Available: 17 pcs.
1000000 Ω
DC filter
X2 100 nF, Y2 100 nF
-25 °C
80 V
1
Plug-in/Screw connection
80 V
100 °C
5 A
DC filter, 15 A, 80 V (DC), 80 V, 100 µH, screw connection, 5500.2225
Order No.:
 59P7343
Manufacturer:
 SCHURTER
Manufacturer SKU
 5500.2225
1 pcs.
27.51 €
3 pcs.
26.33 €
5 pcs.
25.25 €
10 pcs.
24.26 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
DC filter
X2 100 nF, Y2 100 nF
-25 °C
80 V
1
screw connection
80 V
100 °C
15 A
DC filter, 10 A, 80 V (DC), 80 V, 200 µH, screw connection, 5500.2224
Order No.:
 59P7342
Manufacturer:
 SCHURTER
Manufacturer SKU
 5500.2224
1 pcs.
27.51 €
3 pcs.
26.33 €
5 pcs.
25.25 €
10 pcs.
24.26 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
DC filter
X2 100 nF, Y2 100 nF
-25 °C
80 V
1
screw connection
80 V
100 °C
10 A
AC filter, 50 to 60 Hz, 6 A, 250 VAC, 800 µH, faston plug 6.3 mm, 5500.2060
Order No.:
 59P7243
Manufacturer:
 SCHURTER
Manufacturer SKU
 5500.2060
10 pcs.
19.73 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
AC filter
X 100 nF, Y1 1.5 nF, Y2 1 nF
-25 °C
250 VAC
0.00006 MHz
1
faston plug 6.3 mm
100 °C
6 A
0.00005 MHz
DC filter, 30 A, 80 V (DC), 80 V, 80 µH, Plug-in/Screw connection, 5500.2228
Order No.:
 59P7346
Manufacturer:
 SCHURTER
Manufacturer SKU
 5500.2228
10 pcs.
35.57 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
DC filter
X2 100 nF, Y2 100 nF
-25 °C
80 V
1
Plug-in/Screw connection
80 V
100 °C
30 A
DC filter, 20 A, 80 V (DC), 80 V, 70 µH, Plug-in/Screw connection, 5500.2226
Order No.:
 59P7344
Manufacturer:
 SCHURTER
Manufacturer SKU
 5500.2226
10 pcs.
31.74 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
DC filter
X2 100 nF, Y2 100 nF
-25 °C
80 V
1
Plug-in/Screw connection
80 V
100 °C
20 A
AC filter, 50 to 60 Hz, 10 A, 250 VAC, 400 µH, faston plug 6.3 mm, 5500.2062
Order No.:
 59P7245
Manufacturer:
 SCHURTER
Manufacturer SKU
 5500.2062
10 pcs.
20.18 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
AC filter
X 100 nF, Y1 1.5 nF, Y2 1 nF
-25 °C
250 VAC
0.00006 MHz
1
faston plug 6.3 mm
100 °C
10 A
0.00005 MHz
AC filter, 50 to 60 Hz, 3 A, 250 VAC, 2 mH, faston plug 6.3 mm, 5500.2059
Order No.:
 59P7242
Manufacturer:
 SCHURTER
Manufacturer SKU
 5500.2059
10 pcs.
20.41 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
AC filter
X 100 nF, Y1 22 nF
-25 °C
250 VAC
0.00006 MHz
1
faston plug 6.3 mm
100 °C
3 A
0.00005 MHz
AC filter, 50 to 60 Hz, 3 A, 250 VAC, 2 mH, faston plug 6.3 mm, 5500.2058
Order No.:
 59P7241
Manufacturer:
 SCHURTER
Manufacturer SKU
 5500.2058
10 pcs.
19.44 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
AC filter
X 100 nF, Y1 1.5 nF, Y2 1 nF
-25 °C
250 VAC
0.00006 MHz
1
faston plug 6.3 mm
100 °C
3 A
0.00005 MHz
DC filter, 24 A, 80 V (DC), 80 V, 140 µH, Plug-in/Screw connection, 5500.2227
Order No.:
 59P7345
Manufacturer:
 SCHURTER
Manufacturer SKU
 5500.2227
10 pcs.
32.42 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
DC filter
X2 100 nF, Y2 100 nF
-25 °C
80 V
1
Plug-in/Screw connection
80 V
100 °C
24 A
