SCHURTER

5500.2071 | SCHURTER

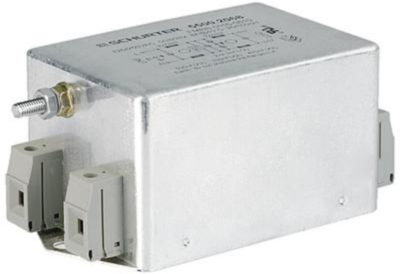

AC filter, 50 to 60 Hz, 25 A, 250 VAC, 25 mH, screw connection, 5500.2071

default S
default L
Total price
(208.27 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
1 pcs.
208.27 €
*incl. VAT plus shipping costs
Description

Product by SCHURTER at Bürklin Elektronik

1-Phase line filter, 5500.2071, SCHURTER

The 5500.2071 is an AC filter 2-Stage. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

  • Designed for high current application
  • Protection against interference voltage from the mains
  • Especially designed for industrial application
  • Suitable for use in equipment
Technical specifications
ohmic resistance 500000 Ω
Connection screw connection
Number of phases 1
Version AC filter
Rated Voltage 250 VAC
Inductance per line 25 mH
integrated switch No
Capacity X|Y X2 2.2 µF, Y2 2.2 nF
max. frequency 0.00006 MHz
max. operating temperature 100 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse No
Rated current 25 A
Show similar products (0)
Logistics
Country of origin SK
Customs tariff number 85363010
MSL MSL 1
Original Packaging Carton with 1 piece
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Variations
1 item with 4 variations
Item description
Price list
Total
ohmic resistance
Version
Rated Voltage
Capacity X|Y
max. frequency
Number of phases
Connection
min. operating temperature
max. operating temperature
Rated current
min. frequency
AC filter, 50 to 60 Hz, 8 A, 250 VAC, 7 mH, screw connection, 5500.2068
Order No.:
 59P7251
Manufacturer:
 SCHURTER
Manufacturer SKU
 5500.2068
5 pcs.
54.19 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
AC filter
250 VAC
X2 0.47 µF, Y2 2.2 nF
0.00006 MHz
1
screw connection
-25 °C
100 °C
8 A
0.00005 MHz
AC filter, 50 to 60 Hz, 25 A, 250 VAC, 25 mH, screw connection, 5500.2071
Order No.:
 59P7254
Manufacturer:
 SCHURTER
Manufacturer SKU
 5500.2071
1 pcs.
208.27 €
0.00 € *
Currently not in stock, we will order for you
500000 Ω
AC filter
250 VAC
X2 2.2 µF, Y2 2.2 nF
0.00006 MHz
1
screw connection
-25 °C
100 °C
25 A
0.00005 MHz
AC filter, 50 to 60 Hz, 12 A, 250 VAC, 5 mH, screw connection, 5500.2069
Order No.:
 59P7252
Manufacturer:
 SCHURTER
Manufacturer SKU
 5500.2069
2 pcs.
105.41 €
0.00 € *
Currently not in stock, we will order for you
500000 Ω
AC filter
250 VAC
X2 2.2 µF, Y2 2.2 nF
0.00006 MHz
1
screw connection
-25 °C
100 °C
12 A
0.00005 MHz
AC filter, 50 to 60 Hz, 16 A, 250 VAC, 16 mH, screw connection, 5500.2070
Order No.:
 59P7253
Manufacturer:
 SCHURTER
Manufacturer SKU
 5500.2070
1 pcs.
179.36 €
0.00 € *
Currently not in stock, we will order for you
500000 Ω
AC filter
250 VAC
X2 2.2 µF, Y2 2.2 nF
0.00006 MHz
1
screw connection
-25 °C
100 °C
16 A
0.00005 MHz
