5500.2070 | SCHURTER
AC filter, 50 to 60 Hz, 16 A, 250 VAC, 16 mH, screw connection, 5500.2070
Unit Price (€ / pc.)
169.1585 € *
Standard delivery time from the manufacturer is: 22 Weeks

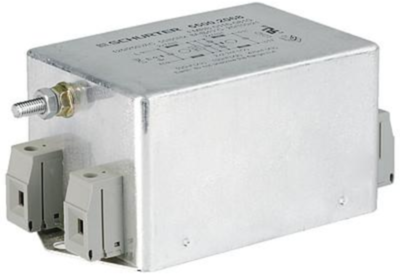

1-Phase line filter, 5500.2070, SCHURTER
The 5500.2070 is an AC filter 2-Stage. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Designed for high current application
- Protection against interference voltage from the mains
- Especially designed for industrial application
- Suitable for use in equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| integrated switch | No | |
| Version | AC filter | |
| Rated Voltage | 250 VAC | |
| min. frequency | 50 Hz | |
| min. operating temperature | -25 °C | |
| Capacity X|Y | X2 2.2 µF, Y2 2.2 nF | |
| max. operating temperature | 100 °C | |
| max. frequency | 60 Hz | |
| ohmic resistance | 500 kΩ | |
| Inductance per line | 16 mH | |
| Connection | screw connection | |
| Rated current | 16 A | |
| Number of phases | 1 | |
| With fuse | No |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 1 piece |
| MSL | MSL 1 |
| Customs tariff number | 85363010 |
| Country of origin | SK |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
