5500.2069 | SCHURTER

AC filter, 50 to 60 Hz, 12 A, 250 VAC, 5 mH, screw connection, 5500.2069

Order No.: 59P7252
EAN: 4099889069266
MPN:
5500.2069
Series: FMBB

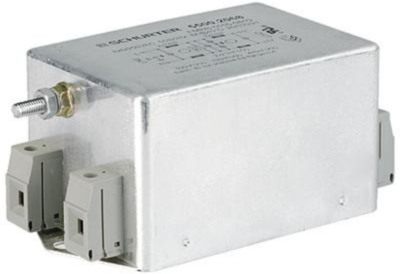

5500.2069 SCHURTER Interference suppression filter
Image may differ
Unit Price (€ / pc.)
131.6259 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
131.63 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
131.6259 €

1-Phase line filter, 5500.2069, SCHURTER

The 5500.2069 is an AC filter 2-Stage. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

  • Designed for high current application
  • Protection against interference voltage from the mains
  • Especially designed for industrial application
  • Suitable for use in equipment
Technical specifications
Filter Property Value
Connection screw connection
Capacity X|Y X2 2.2 µF, Y2 2.2 nF
Number of phases 1
max. frequency 60 Hz
min. frequency 50 Hz
max. operating temperature 100 °C
Inductance per line 5 mH
min. operating temperature -25 °C
Rated Voltage 250 VAC
Version AC filter
Rated current 12 A
With fuse No
ohmic resistance 500 kΩ
integrated switch No
Logistics
Property Value
Country of origin SK
Customs tariff number 85363010
MSL MSL 1
Original Packaging Carton with 2 pieces
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
