SCHURTER

5500.2044 | SCHURTER

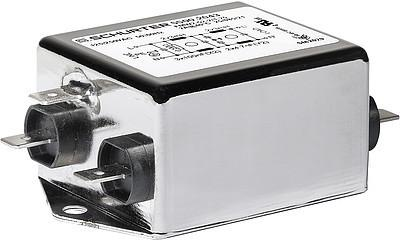

AC filter, 50 to 60 Hz, 6 A, 250 VAC, 0.8 mH, faston plug 6.3 mm, 5500.2044

default S
default L
Total price
(19.24 € * / pcs.)
19.24 €
Available: 6 pcs.
Quantity
Price per unit*
1 pcs.
19.24 €
4 pcs.
18.35 €
8 pcs.
17.54 €
20 pcs.
16.34 €
*incl. VAT plus shipping costs
Show 2 variants
Description

Product by SCHURTER at Bürklin Elektronik

1-Phase line filter, 5500.2044, SCHURTER

The 5500.2044 is an AC filter 2-stage. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

  • Designed for increased requirements
  • Protection against interference voltage from the mains
  • 2-stage line filter with increased attenuation
  • For standard and industrial application
  • Suitable for use in equipment
Technical specifications
ohmic resistance 500000 Ω
Connection faston plug 6.3 mm
Number of phases 1
Version AC filter
Rated Voltage 250 VAC
Inductance per line 0.8 mH
integrated switch No
Capacity X|Y X 100 nF, 2.2 nF
max. frequency 0.00006 MHz
max. operating temperature 100 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse No
Rated current 6 A
Show similar products (0)
Logistics
Country of origin SK
Customs tariff number 85363010
MSL MSL 1
Original Packaging Carton with 10 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
1 item with 2 variations
Item description
Price list
Total
ohmic resistance
Version
Rated Voltage
Capacity X|Y
max. frequency
Number of phases
Connection
min. operating temperature
max. operating temperature
Rated current
min. frequency
AC filter, 50 to 60 Hz, 6 A, 250 VAC, 0.8 mH, faston plug 6.3 mm, 5500.2044
Order No.:
 59P7228
Manufacturer:
 SCHURTER
Manufacturer SKU
 5500.2044
1 pcs.
19.24 €
4 pcs.
18.35 €
8 pcs.
17.54 €
20 pcs.
16.34 €
19.24 € *
Available: 6 pcs.
500000 Ω
AC filter
250 VAC
X 100 nF, 2.2 nF
0.00006 MHz
1
faston plug 6.3 mm
-25 °C
100 °C
6 A
0.00005 MHz
AC filter, 50 to 60 Hz, 2 A, 250 VAC, 3 mH, faston plug 6.3 mm, 5500.2043
Order No.:
 59P7227
Manufacturer:
 SCHURTER
Manufacturer SKU
 5500.2043
10 pcs.
20.38 €
50 pcs.
19.12 €
0.00 € *
Currently not in stock, we will order for you
500000 Ω
AC filter
250 VAC
X 100 nF, 4.7 nF
0.00006 MHz
1
faston plug 6.3 mm
-25 °C
100 °C
2 A
0.00005 MHz
*incl. VAT plus shipping costs
