5500.2018 | SCHURTER
AC filter, 50 to 60 Hz, 4 A, 250 VAC, 1 mH, PCB connection, 5500.2018
Unit Price (€ / pc.)
8.8179 € *
Standard delivery time from the manufacturer is: 40 Weeks

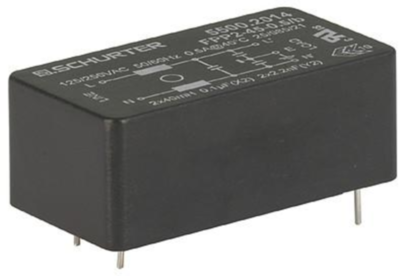

1-Phase line filter, 5500.2018, SCHURTER
The 5500.2018 is an AC filter for PCB mounting in flat housing. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Cost-saving plastic housing
- Protection against interference voltage from the mains
- For standard application
- Suitable for use in equipment
Technical specifications
| max. frequency | 60 Hz | |
| Number of phases | 1 | |
| integrated switch | No | |
| Rated current | 4 A | |
| Inductance per line | 1 mH | |
| Capacity X|Y | X2 100 nF, Y2 2.2 nF | |
| With fuse | No | |
| Version | AC filter | |
| min. operating temperature | -25 °C | |
| Connection | PCB connection | |
| Rated Voltage | 250 VAC | |
| max. operating temperature | 85 °C | |
| min. frequency | 50 Hz |
Download
Logistics
| Country of origin | LK |
| Customs tariff number | 85363010 |
| MSL | MSL 1 |
| Original Packaging | Carton with 70 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
