5500.2015 | SCHURTER
AC filter, 50 to 60 Hz, 1 A, 250 VAC, 10 mH, PCB connection, 5500.2015
Unit Price (€ / pc.)
8.8179 € *
Available: 0 pcs.
Leadtime: 34 Weeks **

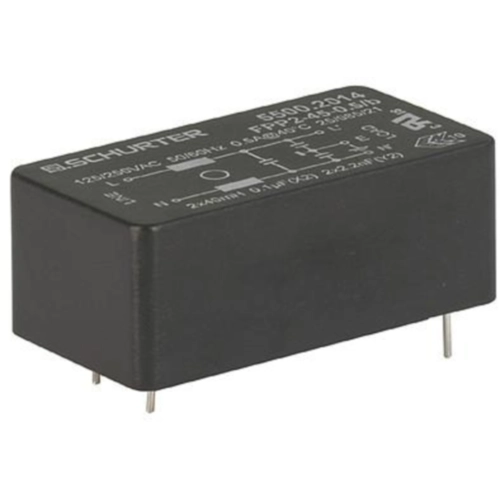

1-Phase line filter, 5500.2015, SCHURTER
The 5500.2015 is an AC filter for PCB mounting in flat housing. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Cost-saving plastic housing
- Protection against interference voltage from the mains
- For standard application
- Suitable for use in equipment
Technical specifications
| Connection | PCB connection | |
| Number of phases | 1 | |
| Version | AC filter | |
| Rated Voltage | 250 VAC | |
| Inductance per line | 10 mH | |
| integrated switch | No | |
| Capacity X|Y | X2 100 nF, Y2 2.2 nF | |
| max. frequency | 60 Hz | |
| max. operating temperature | 85 °C | |
| min. frequency | 50 Hz | |
| min. operating temperature | -25 °C | |
| With fuse | No | |
| Rated current | 1 A |
Download
Logistics
| Country of origin | LK |
| Customs tariff number | 85363010 |
| MSL | MSL 1 |
| Original Packaging | Carton with 70 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
