5500.2017 | SCHURTER
AC filter, 50 to 60 Hz, 2.5 A, 250 VAC, 2 mH, PCB connection, 5500.2017
Unit Price (€ / pc.)
11.8048 € *
Standard delivery time from the manufacturer is: 26 Weeks

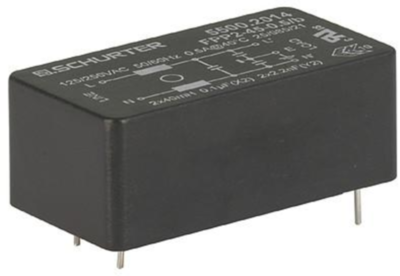

1-Phase line filter, 5500.2017, SCHURTER
The 5500.2017 is an AC filter for PCB mounting in flat housing. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Cost-saving plastic housing
- Protection against interference voltage from the mains
- For standard application
- Suitable for use in equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | PCB connection | |
| Capacity X|Y | X2 100 nF, Y2 2.2 nF | |
| Number of phases | 1 | |
| max. frequency | 60 Hz | |
| min. frequency | 50 Hz | |
| max. operating temperature | 85 °C | |
| Inductance per line | 2 mH | |
| min. operating temperature | -25 °C | |
| Rated Voltage | 250 VAC | |
| Version | AC filter | |
| Rated current | 2.5 A | |
| With fuse | No | |
| integrated switch | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | LK |
| Customs tariff number | 85363010 |
| MSL | MSL 1 |
| Original Packaging | Carton with 70 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
