5500.2014 | SCHURTER
AC filter, 50 to 60 Hz, 500 mA, 250 VAC, 40 mH, PCB connection, 5500.2014
Unit Price (€ / pc.)
11.8048 € *
Standard delivery time from the manufacturer is: 16 Weeks
1-Phase line filter, 55002014, SCHURTER

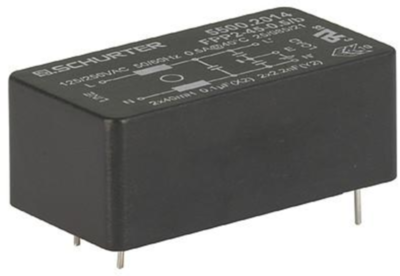

The 55002014 is an AC filter for PCB mounting in flat housing. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Cost-saving plastic housing
- Protection against interference voltage from the mains
- For standard application
- Suitable for use in equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. frequency | 60 Hz | |
| min. frequency | 50 Hz | |
| With fuse | No | |
| max. operating temperature | 85 °C | |
| Rated Voltage | 250 VAC | |
| Connection | PCB connection | |
| min. operating temperature | -25 °C | |
| Number of phases | 1 | |
| Version | AC filter | |
| Inductance per line | 40 mH | |
| Rated current | 500 mA | |
| integrated switch | No | |
| Capacity X|Y | X2 100 nF, Y2 2.2 nF |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | LK |
| Original Packaging | Carton with 70 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85363010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
