5008.0006 | SCHURTER
IEC plug C8, 50 to 60 Hz, 6 A, 250 VAC, 300 µH, faston plug 6.3 mm, 5008.0006
Unit Price (€ / pc.)
5.831 € *
Available: 0 pcs.
Leadtime: 12 Weeks **

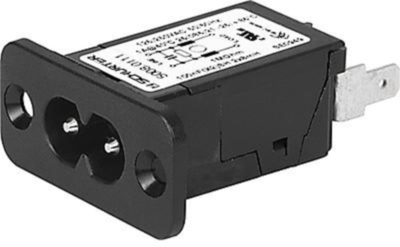

IEC appliance inlet, 5008.0006, SCHURTER
The 5008.0006 is a power entry module with line filter. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Compact high performance filter
- Screw-on mounting from front side
- Suitable for use in medical equipment
Technical specifications
| Connection | faston plug 6.3 mm | |
| Version | IEC plug C8 | |
| Rated Voltage | 250 VAC | |
| Inductance per line | 300 µH | |
| integrated switch | No | |
| Capacity X|Y | X1 100 nF | |
| max. frequency | 60 Hz | |
| max. operating temperature | 85 °C | |
| min. frequency | 50 Hz | |
| min. operating temperature | -25 °C | |
| With fuse | No | |
| Rated current | 6 A |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85363010 |
| MSL | MSL 1 |
| Original Packaging | Carton with 20 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
