SCHURTER

4304.4023 | SCHURTER

IEC plug C14, 50 to 60 Hz, 4 A, 250 VAC, 1.6 W, 1.5 mH, faston plug 6.3 mm, 4304.4023

default S
default L
Total price
(32.67 € * / pcs.)
32.67 €
Available: 5 pcs.
Next delivery: 10 pcs. on 2023-06-02
Quantity
Price per unit*
1 pcs.
32.67 €
3 pcs.
31.26 €
5 pcs.
29.98 €
10 pcs.
28.79 €
*incl. VAT plus shipping costs
Show 5 variants
Description

Product by SCHURTER at Bürklin Elektronik

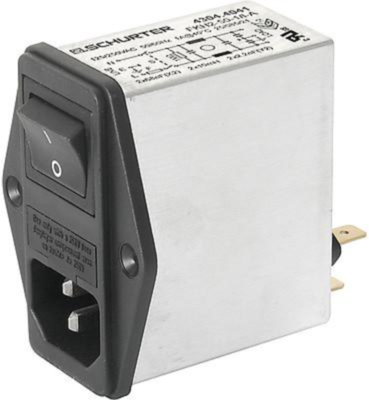

IEC appliance inlet, 4304.4023, SCHURTER

The 4304.4023 is a power entry module with line filter. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

  • Compact design with optimal shielding
  • Plug removal necessary for fuse-link replacement
  • With EMC-shield
  • Line Switch 2-pole
  • Suitable for use in medical equipment
Technical specifications
ohmic resistance 1000000 Ω
Connection faston plug 6.3 mm
Version IEC plug C14
Rated Voltage 250 VAC
Inductance per line 1.5 mH
integrated switch Yes
Capacity X|Y X2 68 nF, Y2 2.2 nF
Power 1.6 W
max. frequency 0.00006 MHz
max. operating temperature 85 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse Yes
Rated current 4 A
Show similar products (0)
Logistics
Country of origin SK
Customs tariff number 85363010
MSL MSL 1
Original Packaging Carton with 10 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
1 item with 5 variations
Item description
Price list
Total
ohmic resistance
Version
Rated Voltage
Capacity X|Y
max. frequency
Connection
min. operating temperature
max. operating temperature
Rated current
min. frequency
Power
IEC plug C14, 50 to 60 Hz, 4 A, 250 VAC, 1.6 W, 1.5 mH, faston plug 6.3 mm, 4304.4023
Order No.:
 59P5659
Manufacturer:
 SCHURTER
Manufacturer SKU
 4304.4023
1 pcs.
32.67 €
3 pcs.
31.26 €
5 pcs.
29.98 €
10 pcs.
28.79 €
32.67 € *
Available: 5 pcs.
Next delivery: 10 pcs. on 2023-06-02
1000000 Ω
IEC plug C14
250 VAC
X2 68 nF, Y2 2.2 nF
0.00006 MHz
faston plug 6.3 mm
-25 °C
85 °C
4 A
0.00005 MHz
1.6 W
IEC plug C14, 50 to 60 Hz, 6 A, 250 VAC, 1.6 W, 800 µH, faston plug 6.3 mm, 4304.4024
Order No.:
 59P5660
Manufacturer:
 SCHURTER
Manufacturer SKU
 4304.4024
1 pcs.
32.67 €
3 pcs.
31.26 €
5 pcs.
29.98 €
10 pcs.
28.79 €
0.00 € *
Next delivery: 40 pcs. on 2023-07-28
1000000 Ω
IEC plug C14
250 VAC
X2 68 nF, Y2 2.2 nF
0.00006 MHz
faston plug 6.3 mm
-25 °C
85 °C
6 A
0.00005 MHz
1.6 W
IEC plug C14, 50 to 60 Hz, 10 A, 250 VAC, 1.6 W, 300 µH, faston plug 6.3 mm, 4304.4025
Order No.:
 59P5661
Manufacturer:
 SCHURTER
Manufacturer SKU
 4304.4025
1 pcs.
32.67 €
3 pcs.
31.26 €
5 pcs.
29.98 €
10 pcs.
28.79 €
0.00 € *
Next delivery: 10 pcs. on 2023-01-27
1000000 Ω
IEC plug C14
250 VAC
X2 68 nF, Y2 2.2 nF
0.00006 MHz
faston plug 6.3 mm
-25 °C
85 °C
10 A
0.00005 MHz
1.6 W
IEC plug C14, 50 to 60 Hz, 1 A, 250 VAC, 1.6 W, 10 mH, faston plug 6.3 mm, 4304.4021
Order No.:
 59P5657
Manufacturer:
 SCHURTER
Manufacturer SKU
 4304.4021
20 pcs.
32.97 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC plug C14
250 VAC
X2 68 nF, Y2 2.2 nF
0.00006 MHz
faston plug 6.3 mm
-25 °C
85 °C
1 A
0.00005 MHz
1.6 W
IEC plug C14, 50 to 60 Hz, 2 A, 250 VAC, 1.6 W, 4 mH, faston plug 6.3 mm, 4304.4022
Order No.:
 59P5658
Manufacturer:
 SCHURTER
Manufacturer SKU
 4304.4022
20 pcs.
32.97 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC plug C14
250 VAC
X2 68 nF, Y2 2.2 nF
0.00006 MHz
faston plug 6.3 mm
-25 °C
85 °C
2 A
0.00005 MHz
1.6 W
*incl. VAT plus shipping costs
