4302.5311 | SCHURTER

IEC plug C14, 50 to 60 Hz, 1 A, 250 VAC, 10 mH, faston plug 6.3 mm, 4302.5311

Order No.: 75D3060
EAN: 4099889080872
MPN:
4302.5311
Series: KFB2
SCHURTER

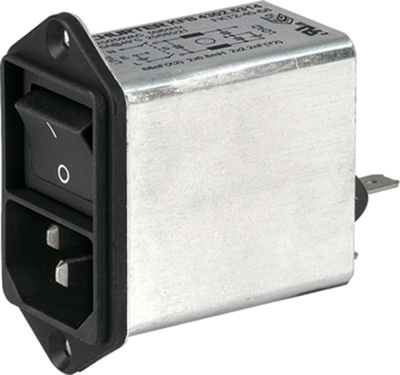

4302.5311 SCHURTER Interference suppression filter Image 1

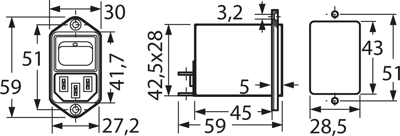

4302.5311 SCHURTER Interference suppression filter Image 2
Image may differ
Unit Price (€ / pc.)
37.1042 € *
Available: 59 pcs.
Leadtime: 11 Weeks **
Total Price:
37.10 € *
Price list
Quantity
Price per unit*
1 pcs.
37.1042 €
10 pcs.
32.6536 €
20 pcs.
31.7492 €
40 pcs.
30.8686 €
160 pcs.
29.0836 €
*incl. VAT plus shipping costs
**Subject to prior sale

EMC filters with add-on function combination series KFB2, type Schurter 4302.

Consists of the filter, an IEC appliance connector of protection class 1 plus a double-pole On/Off power switch without illumination. Vertical actuation; Color: black. Rated voltage: 250 VAC 50/60 Hz. Capacitance: 0.068 µF (X), 2200 pF (Y). Connections: 6.3 mm tab terminals. Certifications: ENEC 10, VDE, UL.

Technical attributes (type, rated current, rated inductance): 4302.5311, 1.0 A, 2 x 10 mH

Technical specifications
Connection faston plug 6.3 mm
Number of phases 1
Version IEC plug C14
Rated Voltage 250 VAC
Inductance per line 10 mH
integrated switch Yes
Capacity X|Y X2 68 nF, Y2 2.2 nF
max. frequency 60 Hz
max. operating temperature 85 °C
min. frequency 50 Hz
min. operating temperature -25 °C
With fuse No
Rated current 1 A
Logistics
Country of origin SK
Customs tariff number 85363010
Original Packaging Carton with 10 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
