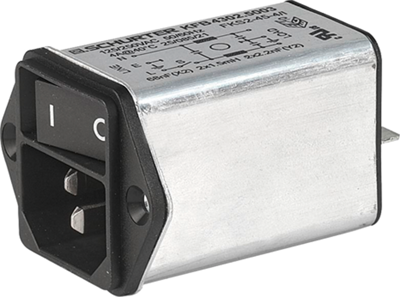

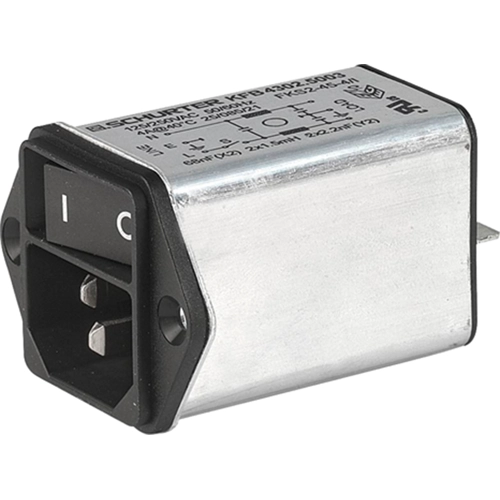

IEC plug C14, 50 to 60 Hz, 6 A, 250 VAC, 800 µH, faston plug 6.3 mm, 4302.5004

default S
front S
default L
front L
Total price
(30.67 € * / pcs.)
30.67 €
Available: 20 pcs.
Next delivery: 10 pcs. on 2023-02-03
Quantity
Price per unit*
1 pcs.
30.67 €
3 pcs.
29.35 €
5 pcs.
28.16 €
10 pcs.
27.04 €
*incl. VAT plus shipping costs
Show 5 variants
Description

Product by SCHURTER at Bürklin Elektronik

EMC filters with add-on function combination series KFB1, type Schurter 4302.

Consists of the filter, an IEC appliance connector of protection class 1 plus a single-pole On/Off power switch without illumination. Horizontal mounting; Color: black. Rated voltage: 250 VAC 50/60 Hz. Capacitance: 0.068 µF (X), 2200 pF (Y). Connections: 6.3 mm tab terminals. Certifications: ENEC 10, VDE, UL.

Technical attributes (type, rated current, rated inductance): 4302.5004, 6.0 A, 0.8 mH

Technical specifications
Connection faston plug 6.3 mm
Number of phases 1
Version IEC plug C14
Rated Voltage 250 VAC
Inductance per line 0.8 mH
integrated switch Yes
Capacity X|Y X2 68 nF, Y2 2.2 nF
max. frequency 0.00006 MHz
max. operating temperature 85 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse No
Rated current 6 A
Show similar products (0)
Logistics
Country of origin SK
Customs tariff number 85363010
Original Packaging Carton with 10 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Variations
1 item with 5 variations
Item description
Price list
Total
Version
Rated Voltage
Capacity X|Y
max. frequency
Number of phases
Connection
min. operating temperature
max. operating temperature
Rated current
min. frequency
IEC plug C14, 50 to 60 Hz, 2 A, 250 VAC, 4 mH, faston plug 6.3 mm, 4302.5002
Order No.:
 75D3042
Manufacturer:
 SCHURTER
Manufacturer SKU
 4302.5002
1 pcs.
30.67 €
3 pcs.
29.35 €
5 pcs.
28.16 €
10 pcs.
27.04 €
30.67 € *
Available: 75 pcs.
IEC plug C14
250 VAC
X2 68 nF, Y2 2.2 nF
0.00006 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
2 A
0.00005 MHz
IEC plug C14, 50 to 60 Hz, 6 A, 250 VAC, 800 µH, faston plug 6.3 mm, 4302.5004
Order No.:
 75D3046
Manufacturer:
 SCHURTER
Manufacturer SKU
 4302.5004
1 pcs.
30.67 €
3 pcs.
29.35 €
5 pcs.
28.16 €
10 pcs.
27.04 €
30.67 € *
Available: 20 pcs.
Next delivery: 10 pcs. on 2023-02-03
IEC plug C14
250 VAC
X2 68 nF, Y2 2.2 nF
0.00006 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
6 A
0.00005 MHz
IEC plug C14, 50 to 60 Hz, 1 A, 250 VAC, 10 mH, faston plug 6.3 mm, 4302.5001
Order No.:
 75D3040
Manufacturer:
 SCHURTER
Manufacturer SKU
 4302.5001
20 pcs.
30.96 €
0.00 € *
Currently not in stock, we will order for you
IEC plug C14
250 VAC
X2 68 nF, Y2 2.2 nF
0.00006 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
1 A
0.00005 MHz
IEC plug C14, 50 to 60 Hz, 4 A, 250 VAC, 1.5 mH, faston plug 6.3 mm, 4302.5003
Order No.:
 59P5496
Manufacturer:
 SCHURTER
Manufacturer SKU
 4302.5003
20 pcs.
30.96 €
0.00 € *
Currently not in stock, we will order for you
IEC plug C14
250 VAC
X2 68 nF, Y2 2.2 nF
0.00006 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
4 A
0.00005 MHz
IEC plug C14, 50 to 60 Hz, 10 A, 250 VAC, 300 µH, faston plug 6.3 mm, 4302.5005
Order No.:
 59P5497
Manufacturer:
 SCHURTER
Manufacturer SKU
 4302.5005
20 pcs.
30.96 €
0.00 € *
Currently not in stock, we will order for you
IEC plug C14
250 VAC
X2 68 nF, Y2 2.2 nF
0.00006 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
10 A
0.00005 MHz
