4301.5004 | SCHURTER

IEC plug C14, 50 to 60 Hz, 6 A, 250 VAC, 800 µH, faston plug 6.3 mm, 4301.5004

Order No.: 75D3156
EAN: 4099889081077
MPN:
4301.5004
Series: KFA

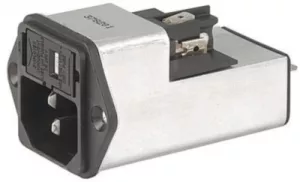

4301.5004 SCHURTER Interference suppression filter Image 1

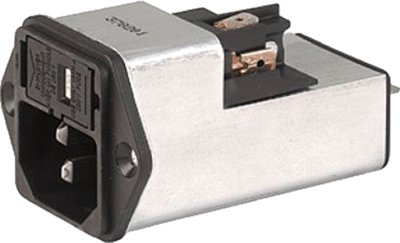

4301.5004 SCHURTER Interference suppression filter Image 2
Image may differ
Unit Price (€ / pc.)
24.0975 € *
Available: 132 pcs.
Total Price:
24.10 € *
Price list
Quantity
Price per unit*
1 pcs.
24.0975 €
10 pcs.
21.2058 €
50 pcs.
19.7540 €
150 pcs.
18.8972 €
500 pcs.
17.9333 €
*incl. VAT plus shipping costs
Subject to prior sale

IEC appliance inlet, 4301.5004, SCHURTER

The 4301.5004 is a power entry module with line filter. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

  • Reduces noise on the ground wire
  • Interrupts ground loops
  • V-Lock cord
  • High asymmetrical attenuation
  • Suitable for assembly in metal plated plastic housing
  • Plug removal necessary for fuse-link replacement
Technical specifications
Filter Property Value
max. frequency 60 Hz
integrated switch No
With fuse Yes
max. operating temperature 85 °C
Number of phases 1
Connection faston plug 6.3 mm
Capacity X|Y X2 68 nF
Inductance per line 800 µH
min. operating temperature -25 °C
Rated Voltage 250 VAC
Rated current 6 A
min. frequency 50 Hz
Version IEC plug C14
Logistics
Property Value
Customs tariff number 85363010
Original Packaging Carton with 10 pieces
Country of origin SK
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
