SCHURTER

4301.5003 | SCHURTER

IEC plug C14, 50 to 60 Hz, 4 A, 250 VAC, 1.5 mH, faston plug 6.3 mm, 4301.5003

default S
front S
default L
front L
Total price
(16.34 € * / pcs.)
16.34 €
Available: 218 pcs.
Quantity
Price per unit*
1 pcs.
16.34 €
5 pcs.
15.59 €
10 pcs.
14.91 €
25 pcs.
13.89 €
*incl. VAT plus shipping costs
Show 6 variants
Description

Product by SCHURTER at Bürklin Elektronik

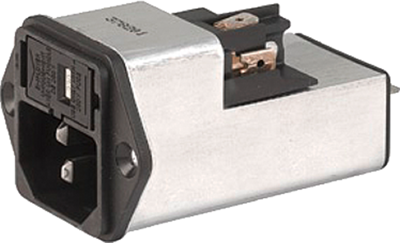

IEC appliance inlet, 4301.5003, SCHURTER

The 4301.5003 is a power entry module with line filter. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

  • Reduces noise on the ground wire
  • Interrupts ground loops
  • V-Lock cord
  • High asymmetrical attenuation
  • Suitable for assembly in metal plated plastic housing
  • Plug removal necessary for fuse-link replacement
Technical specifications
Connection faston plug 6.3 mm
Number of phases 1
Version IEC plug C14
Rated Voltage 250 VAC
Inductance per line 1.5 mH
integrated switch No
Capacity X|Y X2 68 nF
max. frequency 0.00006 MHz
max. operating temperature 85 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse Yes
Rated current 4 A
Show similar products (0)
Logistics
Country of origin SK
Customs tariff number 85363010
Original Packaging Carton with 10 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Variations
1 item with 6 variations
Item description
Price list
Total
Version
Rated Voltage
Capacity X|Y
max. frequency
Number of phases
Connection
min. operating temperature
max. operating temperature
Rated current
min. frequency
IEC plug C14, 50 to 60 Hz, 6 A, 250 VAC, 800 µH, faston plug 6.3 mm, 4301.5004
Order No.:
 75D3156
Manufacturer:
 SCHURTER
Manufacturer SKU
 4301.5004
1 pcs.
16.34 €
5 pcs.
15.59 €
10 pcs.
14.91 €
25 pcs.
13.89 €
0.00 € *
Next delivery: 10 pcs. on 2023-08-04
IEC plug C14
250 VAC
X2 68 nF
0.00006 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
6 A
0.00005 MHz
IEC plug C14, 50 to 60 Hz, 10 A, 250 VAC, 300 µH, faston plug 6.3 mm, 4301.5005
Order No.:
 59P5405
Manufacturer:
 SCHURTER
Manufacturer SKU
 4301.5005
1 pcs.
16.34 €
5 pcs.
15.59 €
10 pcs.
14.91 €
25 pcs.
13.89 €
0.00 € *
Next delivery: 27 pcs. on 2023-07-28
IEC plug C14
250 VAC
X2 68 nF
0.00006 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
10 A
0.00005 MHz
IEC plug C14, 50 to 60 Hz, 4 A, 250 VAC, 1.5 mH, faston plug 6.3 mm, 4301.5003
Order No.:
 75D3154
Manufacturer:
 SCHURTER
Manufacturer SKU
 4301.5003
1 pcs.
16.34 €
5 pcs.
15.59 €
10 pcs.
14.91 €
25 pcs.
13.89 €
16.34 € *
Available: 218 pcs.
IEC plug C14
250 VAC
X2 68 nF
0.00006 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
4 A
0.00005 MHz
IEC plug C14, 50 to 60 Hz, 2 A, 250 VAC, 4 mH, faston plug 6.3 mm, 4301.5002
Order No.:
 75D3152
Manufacturer:
 SCHURTER
Manufacturer SKU
 4301.5002
1 pcs.
16.34 €
5 pcs.
15.59 €
10 pcs.
14.91 €
25 pcs.
13.89 €
16.34 € *
Available: 66 pcs.
IEC plug C14
250 VAC
X2 68 nF
0.00006 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
2 A
0.00005 MHz
IEC plug C14, 50 to 60 Hz, 10 A, 250 VAC, 300 µH, Wire, 4301.7301
Order No.:
 59P5460
Manufacturer:
 SCHURTER
Manufacturer SKU
 4301.7301
20 pcs.
21.05 €
0.00 € *
Currently not in stock, we will order for you
IEC plug C14
250 VAC
X2 68 nF
0.00006 MHz
1
Wire
-25 °C
85 °C
10 A
0.00005 MHz
IEC plug C14, 50 to 60 Hz, 1 A, 250 VAC, 10 mH, faston plug 6.3 mm, 4301.5001
Order No.:
 75D3150
Manufacturer:
 SCHURTER
Manufacturer SKU
 4301.5001
20 pcs.
17.31 €
0.00 € *
Currently not in stock, we will order for you
IEC plug C14
250 VAC
X2 68 nF
0.00006 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
1 A
0.00005 MHz
*incl. VAT plus shipping costs
