4301.5002 | SCHURTER

IEC plug C14, 50 to 60 Hz, 2 A, 250 VAC, 4 mH, faston plug 6.3 mm, 4301.5002

Order No.: 75D3152
EAN: 4099889081053
MPN:
4301.5002
Series: KFA

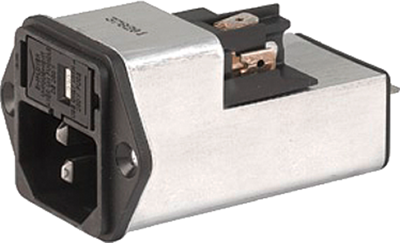

4301.5002 SCHURTER Interference suppression filter Image 1
4301.5002 SCHURTER Interference suppression filter Image 2
Image may differ
Unit Price (€ / pc.)
24.8115 € *
Available: 31 pcs.
Total Price:
24.81 € *
Price list
Quantity
Price per unit*
1 pcs.
24.8115 €
10 pcs.
21.8365 €
50 pcs.
20.3371 €
150 pcs.
19.4565 €
500 pcs.
18.4688 €
*incl. VAT plus shipping costs
Subject to prior sale

IEC appliance inlet, 4301.5002, SCHURTER

The 4301.5002 is a power entry module with line filter. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

  • Reduces noise on the ground wire
  • Interrupts ground loops
  • V-Lock cord
  • High asymmetrical attenuation
  • Suitable for assembly in metal plated plastic housing
  • Plug removal necessary for fuse-link replacement
Technical specifications
Filter Property Value
Connection faston plug 6.3 mm
Capacity X|Y X2 68 nF
Number of phases 1
max. frequency 60 Hz
min. frequency 50 Hz
max. operating temperature 85 °C
Inductance per line 4 mH
min. operating temperature -25 °C
Rated Voltage 250 VAC
Version IEC plug C14
Rated current 2 A
With fuse Yes
integrated switch No
Logistics
Property Value
Country of origin SK
Customs tariff number 85363010
Original Packaging Carton with 10 pieces
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
