4300.5054 | SCHURTER

IEC plug C14, 50 to 60 Hz, 6 A, 250 VAC, 800 µH, faston plug 6.3 mm, 4300.5054

Order No.: 75D3024
EAN: 4099889080704
MPN:
4300.5054
Series: KFS

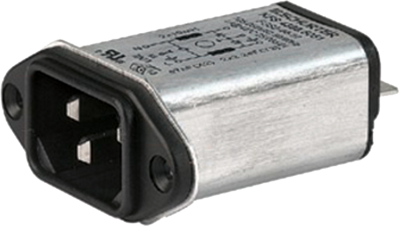

4300.5054 SCHURTER Interference suppression filter Image 1
4300.5054 SCHURTER Interference suppression filter Image 2
Image may differ
Unit Price (€ / pc.)
22.8837 € *
Available: 10 pcs.
Next delivery: 10 pcs. on 2025-08-18
Total Price:
22.88 € *
Price list
Quantity
Price per unit*
1 pcs.
22.8837 €
10 pcs.
20.1467 €
50 pcs.
18.7663 €
150 pcs.
17.9452 €
500 pcs.
17.0289 €
*incl. VAT plus shipping costs
Subject to prior sale

Power entry modules with inlet filter and IEC appliance connector series KFS, type Schurter 4300.

Short design; Protection class: 1. Color: black. Rated voltage: 250 VAC/50-60 Hz. Capacitance: 47 nF (X), 2.2 nF (Y). Connections: 6.3 mm tab terminals. Certifications: ENEC 10, VDE, UL.

Technical attributes (type, rated current, rated inductance): 4300.5054, 6.0 A, 2 x 0.8 mH

Technical specifications
Filter Property Value
integrated switch No
With fuse No
Rated Voltage 250 VAC
Capacity X|Y X2 47 nF
max. frequency 60 Hz
min. operating temperature -25 °C
Connection faston plug 6.3 mm
Number of phases 1
Inductance per line 800 µH
max. operating temperature 85 °C
min. frequency 50 Hz
Version IEC plug C14
Rated current 6 A
Logistics
Property Value
Original Packaging Carton with 10 pieces
Country of origin SK
Customs tariff number 85363010
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
