4300.5052 | SCHURTER

IEC plug C14, 50 to 60 Hz, 2 A, 250 VAC, 4 mH, faston plug 6.3 mm, 4300.5052

Order No.: 59P5290
EAN: 4099889064858
MPN:
4300.5052
Series: KFS
SCHURTER
4300.5052 SCHURTER Interference suppression filter
Image may differ
Unit Price (€ / pc.)
13.4708 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Total Price:
13.47 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
13.4708 €

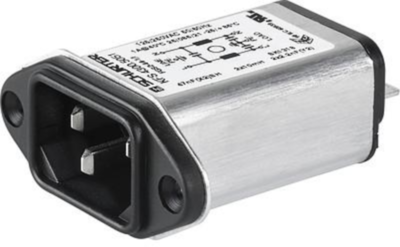

IEC appliance inlet, 4300.5052, SCHURTER

The 4300.5052 is a power entry module with line filter. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

  • Compact design with optimal shielding
  • Universal line filter for standard application
  • V-Lock cord
  • Screw-on mounting front side
Technical specifications
Connection faston plug 6.3 mm
Number of phases 1
Version IEC plug C14
Rated Voltage 250 VAC
Inductance per line 4 mH
integrated switch No
Capacity X|Y X2 47 nF
max. frequency 60 Hz
max. operating temperature 85 °C
min. frequency 50 Hz
min. operating temperature -25 °C
With fuse No
Rated current 2 A
Logistics
Country of origin SK
Customs tariff number 85363010
MSL MSL 1
Original Packaging Carton with 10 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
