IEC inlet filter C20, 50 to 60 Hz, 20 A, 250 VAC, faston plug 6.3 mm, 3-136-812

default S
default L
Total price
(29.50 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
20 pcs.
29.50 €
*incl. VAT plus shipping costs
Description

Product by SCHURTER at Bürklin Elektronik

Power entry modules with line filter, 3-136-812, Schurter

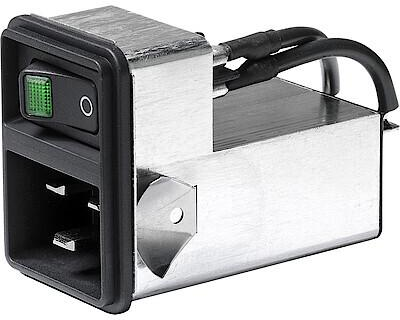

IEC appliance inlet C20 with filter, line switch 2-pole

Features

  • Line switch non-illuminated
  • With EMC-shield
  • Compact size
  • Ideal for application with high transient loads
  • V-Lock cord retaining
Technical specifications
ohmic resistance 1000000 Ω
Connection faston plug 6.3 mm
Version IEC inlet filter C20
Rated Voltage 250 VAC
integrated switch Yes
Capacity X|Y X 100 nF
max. frequency 0.00006 MHz
max. operating temperature 85 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse No
Rated current 20 A
Show similar products (0)
Logistics
Country of origin CZ
Customs tariff number 85363010
Original Packaging Carton with 20 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
1 item with 2 variations
Item description
Price list
Total
ohmic resistance
Version
Rated Voltage
Capacity X|Y
max. frequency
Connection
min. operating temperature
max. operating temperature
Rated current
min. frequency
IEC inlet filter C20, 50 to 60 Hz, 20 A, 250 VAC, faston plug 6.3 mm, 3-136-812
Order No.:
 75D3090
Manufacturer:
 SCHURTER
Manufacturer SKU
 3-136-812
20 pcs.
29.50 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C20
250 VAC
X 100 nF
0.00006 MHz
faston plug 6.3 mm
-25 °C
85 °C
20 A
0.00005 MHz
IEC inlet filter C20, 50 to 60 Hz, 16 A, 250 VAC, faston plug 6.3 mm, 3-136-814
Order No.:
 75D3092
Manufacturer:
 SCHURTER
Manufacturer SKU
 3-136-814
20 pcs.
29.50 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C20
250 VAC
X 100 nF, Y2 2.2 nF
0.00006 MHz
faston plug 6.3 mm
-25 °C
85 °C
16 A
0.00005 MHz
