3-128-421 | SCHURTER

2-stage filter, 50 to 60 Hz, 25 A, 520 VAC, 1.6 W, screw connection, 3-128-421

Order No.: 59P9810
EAN: 4099889075311
MPN:
3-128-421
Series: FMBD EP

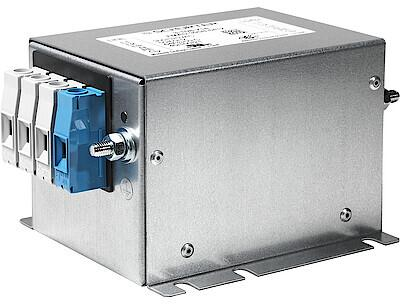

3-128-421 SCHURTER Interference suppression filter
Image may differ
Unit Price (€ / pc.)
112.3598 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
112.36 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
112.3598 €

3-Phase AC/DC filter, 3-128-421, SCHURTER

The 3-128-421 is a 2-stage filter for 3-phase system. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

  • Compact design with small footprint
  • Double-stage filter for high attenuation
  • High voltage version
  • Wide temperature range
  • Especially designed for industrial application

Applications

  • Protection against interference voltage from the mains
  • Frequency converters
  • Stepper motor drive
  • UPS-system
  • Suitable for use in equipment
Technical specifications
max. frequency 60 Hz
Number of phases 3
integrated switch No
Rated current 25 A
Power 1.6 W
With fuse No
Version 2-stage filter
min. operating temperature -40 °C
Connection screw connection
Rated Voltage 520 VAC
max. operating temperature 100 °C
min. frequency 50 Hz
ohmic resistance 2.5 mΩ
Logistics
Country of origin RO
Customs tariff number 85363010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
