SCHURTER

3-128-420 | SCHURTER

2-stage filter, 50 to 60 Hz, 16 A, 520 VAC, 1.3 W, screw connection, 3-128-420

default S
default L
Total price
(100.91 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
10 pcs.
100.91 €
*incl. VAT plus shipping costs
Description

Product by SCHURTER at Bürklin Elektronik

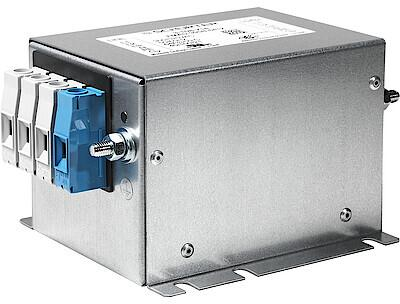

3-Phase AC/DC filter, 3-128-420, SCHURTER

The 3-128-420 is a 2-stage filter for 3-phase system. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

  • Compact design with small footprint
  • Double-stage filter for high attenuation
  • High voltage version
  • Wide temperature range
  • Especially designed for industrial application

Applications

  • Protection against interference voltage from the mains
  • Frequency converters
  • Stepper motor drive
  • UPS-system
  • Suitable for use in equipment
Technical specifications
ohmic resistance 0.0049 Ω
Connection screw connection
Number of phases 3
Version 2-stage filter
Rated Voltage 520 VAC
integrated switch No
Power 1.3 W
max. frequency 0.00006 MHz
max. operating temperature 100 °C
min. frequency 0.00005 MHz
min. operating temperature -40 °C
With fuse No
Rated current 16 A
Show similar products (0)
Logistics
Country of origin RO
Customs tariff number 85363010
Original Packaging Carton with 10 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Variations
1 item with 5 variations
Item description
Price list
Total
ohmic resistance
Version
Rated Voltage
max. frequency
Number of phases
Connection
min. operating temperature
max. operating temperature
Rated current
min. frequency
Power
2-stage filter, 50 to 60 Hz, 25 A, 520 VAC, 1.6 W, screw connection, 3-128-421
Order No.:
 59P9810
Manufacturer:
 SCHURTER
Manufacturer SKU
 3-128-421
10 pcs.
104.64 €
0.00 € *
Currently not in stock, we will order for you
0.0025 Ω
2-stage filter
520 VAC
0.00006 MHz
3
screw connection
-40 °C
100 °C
25 A
0.00005 MHz
1.6 W
2-stage filter, 50 to 60 Hz, 16 A, 520 VAC, 1.3 W, screw connection, 3-128-420
Order No.:
 59P9809
Manufacturer:
 SCHURTER
Manufacturer SKU
 3-128-420
10 pcs.
100.91 €
0.00 € *
Currently not in stock, we will order for you
0.0049 Ω
2-stage filter
520 VAC
0.00006 MHz
3
screw connection
-40 °C
100 °C
16 A
0.00005 MHz
1.3 W
2-stage filter, 50 to 60 Hz, 64 A, 520 VAC, 5 W, screw connection, 3-128-424
Order No.:
 59P9813
Manufacturer:
 SCHURTER
Manufacturer SKU
 3-128-424
5 pcs.
174.34 €
0.00 € *
Currently not in stock, we will order for you
0.0012 Ω
2-stage filter
520 VAC
0.00006 MHz
3
screw connection
-40 °C
100 °C
64 A
0.00005 MHz
5 W
2-stage filter, 50 to 60 Hz, 36 A, 520 VAC, 2.1 W, screw connection, 3-128-422
Order No.:
 59P9811
Manufacturer:
 SCHURTER
Manufacturer SKU
 3-128-422
10 pcs.
121.46 €
0.00 € *
Currently not in stock, we will order for you
0.0016 Ω
2-stage filter
520 VAC
0.00006 MHz
3
screw connection
-40 °C
100 °C
36 A
0.00005 MHz
2.1 W
2-stage filter, 50 to 60 Hz, 50 A, 520 VAC, 4 W, screw connection, 3-128-423
Order No.:
 59P9812
Manufacturer:
 SCHURTER
Manufacturer SKU
 3-128-423
10 pcs.
123.33 €
0.00 € *
Currently not in stock, we will order for you
0.0016 Ω
2-stage filter
520 VAC
0.00006 MHz
3
screw connection
-40 °C
100 °C
50 A
0.00005 MHz
4 W
