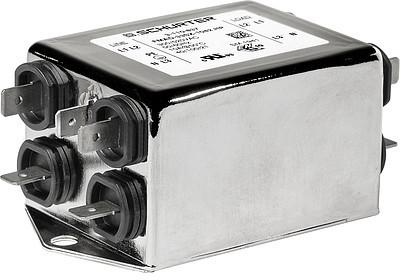

1-stage filter, 50 to 60 Hz, 16 A, 300/520 VAC, screw connection, 3-111-515

default S
default L
Total price
(24.61 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
10 pcs.
24.61 €
*incl. VAT plus shipping costs
Description

Product by SCHURTER at Bürklin Elektronik

3-Phase AC/DC filter, 3-111-515, SCHURTER

The 3-111-515 is a 1-stage filter for 3-phase system with neutral conductor. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

  • Compact single-stage filter
  • Various filter variants
  • Light weight design
  • Wide temperature range

Applications

  • For low power 3 phase energy inverter such as photovoltaic or battery storage system
  • Suitable for use in equipment
Technical specifications
ohmic resistance 0.0035 Ω
Connection screw connection
Number of phases 3
Version 1-stage filter
Rated Voltage 300/520 VAC
integrated switch No
max. frequency 0.00006 MHz
max. operating temperature 100 °C
min. frequency 0.00005 MHz
min. operating temperature -40 °C
With fuse No
Rated current 16 A
Show similar products (0)
Logistics
Country of origin RO
Customs tariff number 85363010
Original Packaging Carton with 10 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Accessory
Mounting accesory, DIN-Rail Kit 75 mm for filter
Order No.:
 75D2021
Manufacturer:
 SCHURTER
Manufacturer SKU
 3-135-942
20 pcs.
5.95 €
0.00 € *
Currently not in stock, we will order for you
Mounting accesory, DIN-Rail Kit 103 mm for filter
Order No.:
 75D2020
Manufacturer:
 SCHURTER
Manufacturer SKU
 3-135-931
20 pcs.
5.95 €
0.00 € *
Currently not in stock, we will order for you
*incl. VAT plus shipping costs
Variations
1 item with 5 variations
Item description
Price list
Total
ohmic resistance
Version
Rated Voltage
max. frequency
Number of phases
Connection
min. operating temperature
max. operating temperature
Rated current
min. frequency
1-stage filter, 50 to 60 Hz, 16 A, 300/520 VAC, screw connection, 3-111-515
Order No.:
 71D9021
Manufacturer:
 SCHURTER
Manufacturer SKU
 3-111-515
10 pcs.
24.61 €
0.00 € *
Currently not in stock, we will order for you
0.0035 Ω
1-stage filter
300/520 VAC
0.00006 MHz
3
screw connection
-40 °C
100 °C
16 A
0.00005 MHz
1-stage filter, 50 to 60 Hz, 3 A, 300/520 VAC, screw connection, 3-110-817
Order No.:
 71D9023
Manufacturer:
 SCHURTER
Manufacturer SKU
 3-110-817
10 pcs.
19.91 €
0.00 € *
Currently not in stock, we will order for you
0.0789 Ω
1-stage filter
300/520 VAC
0.00006 MHz
1
screw connection
-40 °C
100 °C
3 A
0.00005 MHz
1-stage filter, 50 to 60 Hz, 20 A, 300/520 VAC, screw connection, 3-110-820
Order No.:
 71D9022
Manufacturer:
 SCHURTER
Manufacturer SKU
 3-110-820
10 pcs.
25.28 €
0.00 € *
Currently not in stock, we will order for you
0.0022 Ω
1-stage filter
300/520 VAC
0.00006 MHz
1
screw connection
-40 °C
100 °C
20 A
0.00005 MHz
1-stage filter, 50 to 60 Hz, 10 A, 300/520 VAC, screw connection, 3-110-819
Order No.:
 71D9020
Manufacturer:
 SCHURTER
Manufacturer SKU
 3-110-819
10 pcs.
22.81 €
0.00 € *
Currently not in stock, we will order for you
0.0069 Ω
1-stage filter
300/520 VAC
0.00006 MHz
1
screw connection
-40 °C
100 °C
10 A
0.00005 MHz
1-stage filter, 50 to 60 Hz, 6 A, 300/520 VAC, screw connection, 3-110-818
Order No.:
 71D9024
Manufacturer:
 SCHURTER
Manufacturer SKU
 3-110-818
10 pcs.
21.69 €
0.00 € *
Currently not in stock, we will order for you
0.013 Ω
1-stage filter
300/520 VAC
0.00006 MHz
1
screw connection
-40 °C
100 °C
6 A
0.00005 MHz
