IEC plug C14, 50 to 60 Hz, 10 A, 250 VAC, 0.4 mH, faston plug 6.3 mm, 3-100-776

default S
default L
Total price
(9.13 € * / pcs.)
9.13 €
Available: 69 pcs.
Quantity
Price per unit*
1 pcs.
9.13 €
5 pcs.
8.39 €
25 pcs.
8.00 €
75 pcs.
7.65 €
150 pcs.
7.44 €
*incl. VAT plus shipping costs
Show 2 variants
Description

Product by SCHURTER at Bürklin Elektronik

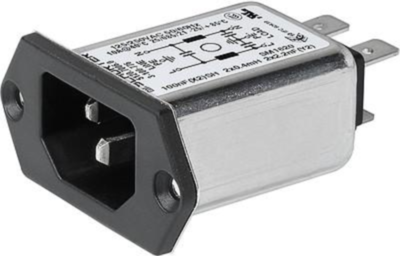

IEC appliance inlet, 3-100-776, SCHURTER

The 3-100-776 is a power entry module with line filter. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

  • Metal flange for optimal shielding
  • Compact design
  • Compact high performance filter
  • Suitable for assembly in metal plated plastic housing
  • Suitable for use in medical equipment
  • Optimal shielding due to completely closed filter case, unpotted
Technical specifications
Connection faston plug 6.3 mm
Version IEC plug C14
Rated Voltage 250 VAC
Inductance per line 0.4 mH
integrated switch No
Capacity X|Y X 100 nF, Y 2.2 nF
max. frequency 0.00006 MHz
max. operating temperature 85 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse No
Rated current 10 A
Show similar products (0)
Logistics
Country of origin RO
Customs tariff number 85363010
MSL MSL 1
Original Packaging Carton with 10 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
1 item with 2 variations
Item description
Price list
Total
Version
Rated Voltage
Capacity X|Y
max. frequency
Connection
min. operating temperature
max. operating temperature
Rated current
min. frequency
IEC plug C14, 50 to 60 Hz, 10 A, 250 VAC, 0.4 mH, faston plug 6.3 mm, 3-100-776
Order No.:
 59P4550
Manufacturer:
 SCHURTER
Manufacturer SKU
 3-100-776
1 pcs.
9.13 €
5 pcs.
8.39 €
25 pcs.
8.00 €
75 pcs.
7.65 €
150 pcs.
7.44 €
9.13 € *
Available: 69 pcs.
IEC plug C14
250 VAC
X 100 nF, Y 2.2 nF
0.00006 MHz
faston plug 6.3 mm
-25 °C
85 °C
10 A
0.00005 MHz

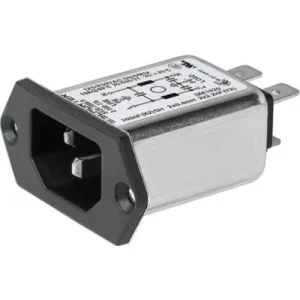

IEC plug C14, 50 to 60 Hz, 4 A, 250 VAC, 2 mH, faston plug 6.3 mm, 3-101-142
Order No.:
 59P4581
Manufacturer:
 SCHURTER
Manufacturer SKU
 3-101-142
20 pcs.
8.83 €
0.00 € *
Currently not in stock, we will order for you
IEC plug C14
250 VAC
X 100 nF, Y 2.2 nF
0.00006 MHz
faston plug 6.3 mm
-25 °C
85 °C
4 A
0.00005 MHz
