0031.2520 | SCHURTER
Fuse holder, 6.3 x 32 mm, 16 A, 500 V, PCB mounting, 0031.2520
Unit Price (€ / pc.)
7.0924 € *
Available: 1,057 pcs.
Leadtime: 8 Weeks **

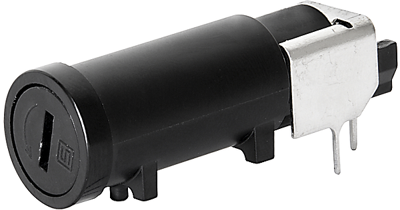

Fuse holder, 0031.2520, SCHURTER
Shock-safe fuse-holder with slotted cap, fuse-link: 6.3 x 32 mm, drilling diagram (FUP and FUA), PCB mounting, IP 40.
Features
- High rated power acceptance
Applications
- Equipment with three-phase supply (400 VAC)
- 500 VAC applications
- Applications with rated current up to 16 A (VDE)
Technical specifications
| Connection | solder connection | |
| Version of the cap | slotted | |
| Version | closed | |
| Type of mounting | PCB mounting | |
| Touch protection | PC2 | |
| Installation diameter | 19 mm | |
| For Fuse | 6.3 x 32 mm | |
| Rated voltage | 500 V | |
| Rated current | 16 A | |
| Degree of protection (IP) | IP40 |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85363010 |
| Original Packaging | Carton with 25 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
