0031.2500 | SCHURTER

Fuse holder, 5 x 20 mm/6.3 x 32 mm, 16 A, 500 V, PCB mounting, 0031.2500

Order No.: 46G6120
EAN: 4099889127157
MPN:
0031.2500
Series: FUP

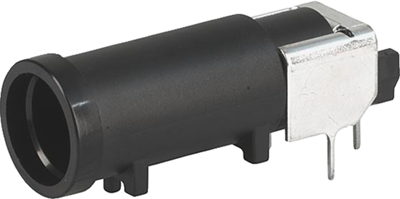

0031.2500 SCHURTER Fuse Holders Image 1
0031.2500 SCHURTER Fuse Holders Image 2
Image may differ
Unit Price (€ / pc.)
5.8429 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
5.84 € *
Price list
Quantity
Price per unit*
1 pcs.
5.8429 €
10 pcs.
5.3193 €
50 pcs.
4.7838 €
100 pcs.
4.3078 €
*incl. VAT plus shipping costs
Subject to prior sale

Fuse holders for 5 x 20 mm or 6.3 x 32 mm G fuses, series FUP, type Schurter 0031.

Compliant with IEC 60127-6, for axial PCB mounting, the bayonet lock cap size determines the size of the fuse to insert; Rated voltage: 500 VAC (VDE), 250 VAC (UL/CSA). Rated current: 16 A (VDE), 30 A (UL/CSA). Socket material: Duroplast, UL 94 VDC0, black. Connections: tinned copper alloy. Degree of protection: IP 40, suitable for devices of safety class I or II to IEC 61140. Touch protection category: PC2. Ambient temperatures: –40 to +85 °C. Certifications: VDE, UL, CSA. The bayonet lock caps must be installed and are available on separate order.

Type: 0031.2500, holder without cap

Technical specifications
Filter Property Value
For Fuse 5 x 20 mm/6.3 x 32 mm
Version closed
Connection solder connection
Type of mounting PCB mounting
Installation diameter 19 mm
Version of the cap slotted
Rated current 16 A
Rated voltage 500 V
Touch protection PC2
Degree of protection (IP) IP40
Logistics
Property Value
Country of origin CH
Customs tariff number 85363010
Original Packaging Carton with 25 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
