0031.1361 | SCHURTER
Fuse holder, 5 x 20 mm, 10 A, 250 V, central Mounting, 0031.1361
Unit Price (€ / pc.)
5.5454 € *
Available: 177 pcs.
Total Price:
5.55 € *
Price list
Quantity
Price per unit*
1 pcs.
5.5454 €
10 pcs.
4.8790 €
100 pcs.
4.2840 €
200 pcs.
4.1055 €
800 pcs.
3.8437 €
*incl. VAT plus shipping costs
Subject to prior sale
Fuse holder, 0031.1361, SCHURTER

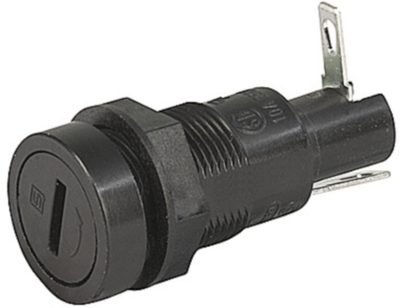

Shock-safe fuse-holder with slotted cap, 5 x 20 mm, end-terminal position: 30° to fuse axis, IP 65.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| For Fuse | 5 x 20 mm | |
| Version | closed | |
| Connection | solder connection | |
| Type of mounting | central Mounting | |
| Installation diameter | 12 mm | |
| Version of the cap | slotted | |
| Rated current | 10 A | |
| Rated voltage | 250 V | |
| Touch protection | PC2 | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| MSL | MSL 1 |
| Original Packaging | Carton with 100 pieces |
| Customs tariff number | 85363010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
