DSH-22-0006 | SCHURTER

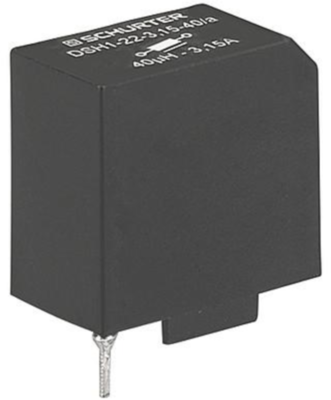

Storage choke, radial, 0.04 mH, 3.15 A, DSH-22-0006
Unit Price (€ / pc.)
3.8199 € *
Available: 0 pcs.
Leadtime: 40 Weeks **
Storage choke, DSH-22-0006, SCHURTER
The DSH-22-0006 is a storage choke that is used for energy storage in SMPS's. It is made of iron or metal powder cores with one winding.
Features
- Storage choke
- Constant inductance at high alternating field modulation and large DC magnetization
- Inductor vertically positioned in housing
- Reduced magnetic reversal
Applications
- Storage of energy in switched power supplies
- Switch-mode
- Chopper amplifiers
- DC drives and stepper motor controls
Technical specifications
| DC current | 3.15 A | |
| Width | 13 mm | |
| Height | 24 mm | |
| Length | 23 mm | |
| DC resistance | 33 mΩ | |
| Version | storage choke | |
| Design | radial | |
| Tolerance | ±15 % | |
| Inductance | 0.04 mH |
Download
Logistics
| Country of origin | LK |
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
