DKFP-D22D-D839 | SCHURTER

Suppressor choke, 39 mH, 0.8 A, DKFP-D22D-D839

Order No.: 59P8875
EAN: 4099889002409
MPN:
DKFP-D22D-D839
Series: DKFP
SCHURTER
DKFP-D22D-D839 SCHURTER Fixed Inductors

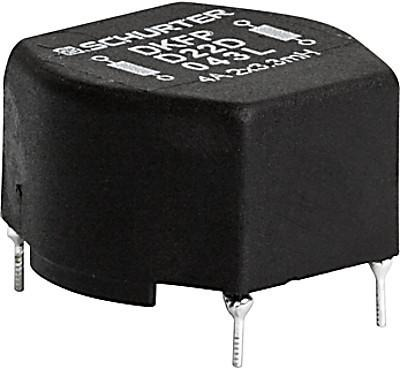

Image may differ
Unit Price (€ / pc.)
2.1063 € *
Available: 0 pcs.
Leadtime: 41 Weeks **
Total Price:
2.11 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2.1063 €

Fixed inductor, DKFP-D22D-D839, SCHURTER

The DKFP-D22D-D839 is a current compensated choke. It is used for limiting currents in electrical lines, for intermediate storage of energy, for impedance matching or for filtering.

Features

  • Current compensated choke
  • THT-terminals
  • High inductance and compact dimensions
  • Multiple pin configurations

Applications

  • Attenuation of common mode interferences
  • Designed for 230/400 VAC applications
  • DC drives and stepper motor controls
  • Switching power supplies
Technical specifications
Version suppressor choke
Width 28 mm
DC current 0.8 A
DC resistance 955 mΩ
Height 17 mm
Inductance 39 mH
Length 29 mm
Tolerance -30/+50 %
Logistics
Country of origin LK
Customs tariff number 85045000
MSL MSL 1
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
