DKFP-A21A-0103 | SCHURTER

Suppressor choke, radial, 3 mH, 1 A, DKFP-A21A-0103

Order No.: 59P8851
EAN: 4099889002164
MPN:
DKFP-A21A-0103
Series: DKFP
SCHURTER

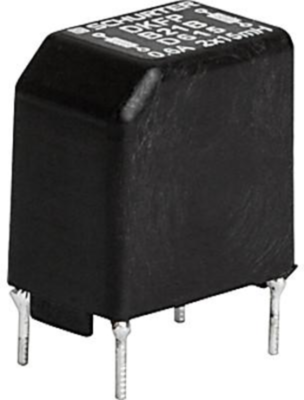

DKFP-A21A-0103 SCHURTER Fixed Inductors
Image may differ
Unit Price (€ / pc.)
1.6065 € *
Available: 0 pcs.
Leadtime: 41 Weeks **
Total Price:
1.61 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1.6065 €

Fixed inductor, DKFP-A21A-0103, SCHURTER

The DKFP-A21A-0103 is a current compensated choke. It is used for limiting currents in electrical lines, for intermediate storage of energy, for impedance matching or for filtering.

Features

  • Current compensated choke
  • THT-terminals
  • High inductance and compact dimensions
  • Multiple pin configurations

Applications

  • Attenuation of common mode interferences
  • Designed for 230/400 VAC applications
  • DC drives and stepper motor controls
  • Switching power supplies
Technical specifications
Version suppressor choke
Design radial
Width 9 mm
DC current 1 A
DC resistance 200 mΩ
Height 14 mm
Inductance 3 mH
Length 18.5 mm
Tolerance -30/+50 %
Logistics
Country of origin LK
Customs tariff number 85045000
MSL MSL 1
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
