DFKH-14-0002 | SCHURTER
Suppressor choke, radial, 4 mH, 1 A, DFKH-14-0002
Unit Price (€ / pc.)
1.8445 € *
Available: 0 pcs.
Leadtime: 34 Weeks **

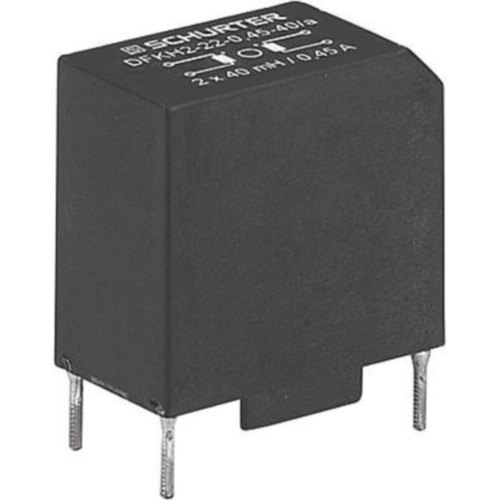

Suppressor inductor, DFKH-14-0002, SCHURTER
The DFKH-14-0002 is a current compensated choke. It is used for limiting currents in electrical lines, for intermediate storage of energy, for impedance matching or for filtering.
Features
- Current compensated choke
- 1-phase choke
- THT-terminals
- Inductor vertically positioned in housing
Applications
- Attenuation of common mode interferences
- Designed for 230/400 VAC applications
- DC drives and stepper motor controls
- Switching power supplies
Technical specifications
| Version | suppressor choke | |
| Design | radial | |
| Width | 10.5 mm | |
| DC current | 1 A | |
| DC resistance | 250 mΩ | |
| Height | 13.5 mm | |
| Inductance | 4 mH | |
| Length | 15 mm | |
| Tolerance | -30/+50 % |
Download
Logistics
| Country of origin | LK |
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
