KG16.5101.107 | SCHURTER
Plug C14, 3 pole, snap-in, plug-in connection, black, KG16.5101.107
Unit Price (€ / pc.)
10.0674 € *
Available: 0 pcs.
Leadtime: 8 Weeks **

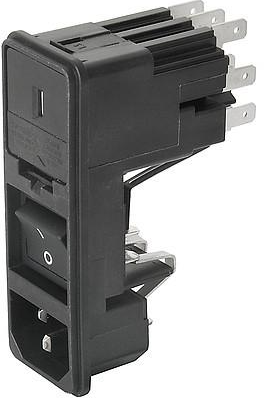

Plug, KG16.5101.107, SCHURTER
IEC Appliance inlet C14 with fuseholder 1-pole, Line switch 2-pole and voltage selector.
Features
- Panel mountable
- 4 Functions
- All single elements are already wired
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 1
Technical specifications
| Switch illuminated | No | |
| Colour | black | |
| Number of poles switch | 2 pole | |
| Pin temperature | 70 °C | |
| Type of locking | No | |
| Rated current UL/CSA | 10 A | |
| Assembly | snap-in | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 10 A | |
| Rated voltage IEC | 250 V | |
| IEC designation | C14 | |
| Fuse holder present | Yes | |
| Panel thickness | 2 mm | |
| Pin number | 3 pole | |
| Version | plug | |
| Design | straight | |
| Power switch available | Yes | |
| Connection | plug-in connection | |
| Swich colour | black | |
| Number of poles fuse holder | 1 pole | |
| Line filter present | No |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
| Original Packaging | Carton with 20 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
