9009.0121 | SCHURTER

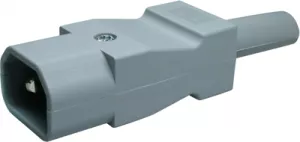

Plug E, 3 pole, cable assembly, screw connection, 1.5 mm², gray, 9009.0121
Unit Price (€ / pc.)
8.1753 € *
Available: 135 pcs.
Next delivery: 150 pcs. on 2025-07-11
Total Price:
8.18 € *
Price list
Quantity
Price per unit*
1 pcs.
8.1753 €
10 pcs.
7.1876 €
50 pcs.
6.7116 €
200 pcs.
6.3070 €
400 pcs.
6.0571 €
*incl. VAT plus shipping costs
Subject to prior sale
IEC cord connectors, type Schurter 9009.
To IEC/EN 60320-1, for cable mounting, pin temperatures up to +70 °C; Connection: screw terminals, 2-pole + ground contact, 10 A/250 VAC (ENEC), 15 A/250 VAC (UL/CSA). Degree of protection (at the front): IP 20 to IEC 60529, suitable for devices with safety class I to IEC 61140. Housing material: polyamide (PA6), UL 94 V-0. Certifications: ENEC, UL, CSA. Note: The versions for 8.0 mm diameter can be cut off to suit a 10 mm cable diameter.
Technical attributes (type, color, for cable diameter): 9009.0121, gray, 8.0 (10) mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switch illuminated | No | |
| Assembly | cable assembly | |
| Rated voltage UL/CSA | 250 V | |
| Rated current UL/CSA | 15 A | |
| Cable cross-section | 1.5 mm² | |
| Cable diameter | 10 mm | |
| Pin temperature | 70 °C | |
| Fuse holder present | No | |
| Design | straight | |
| Colour | gray | |
| Pin number | 3 pole | |
| Rated voltage IEC | 250 V | |
| Product type | plug | |
| Line filter present | No | |
| IEC designation | E | |
| Rated current IEC | 10 A | |
| Type of locking | No | |
| Connection | screw connection | |
| Power switch available | No |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 50 pieces |
| Customs tariff number | 85366990 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
