6102.5312 | SCHURTER
Plug C18, 2 pole, snap-in, plug-in connection, black, 6102.5312
Unit Price (€ / pc.)
0.7735 € *
Available: 0 pcs.
Leadtime: 6 Weeks **

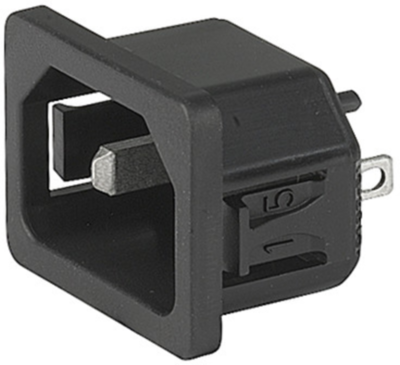

Plug, 6102.5312, SCHURTER
IEC Appliance inlet C18, Snap-in mounting, Front side, Quick-connect terminals.
Features
- Panel mountable
- 1 Function
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 2
Technical specifications
| Switch illuminated | No | |
| Colour | black | |
| Pin temperature | 70 °C | |
| Type of locking | No | |
| Rated current UL/CSA | 15 A | |
| Assembly | snap-in | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 10 A | |
| Rated voltage IEC | 250 V | |
| IEC designation | C18 | |
| Fuse holder present | No | |
| Panel thickness | 1.2 mm | |
| Pin number | 2 pole | |
| Version | plug | |
| Design | straight | |
| Power switch available | No | |
| Connection | plug-in connection |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
| Original Packaging | Carton with 50 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
