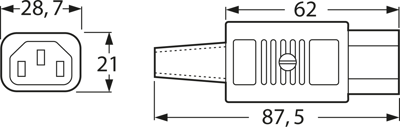

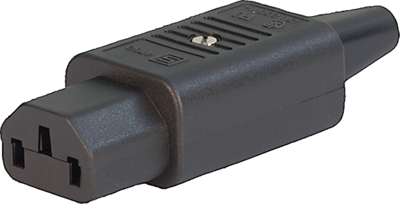

Appliance inlet C13, 3 pole, cable assembly, screw connection, 1.5 mm², black, 4782.0100

default S
front S
default L
front L
Total price
(3.40 € * / pcs.)
3.40 €
Available: 3,414 pcs.
Next delivery: 100 pcs. on 2023-02-24
Quantity
Price per unit*
1 pcs.
3.40 €
10 pcs.
3.14 €
50 pcs.
2.89 €
100 pcs.
2.71 €
*incl. VAT plus shipping costs
Show 6 variants
Description

Product by SCHURTER at Bürklin Elektronik

IEC cord connectors, type Schurter 4782.

To IEC/EN 60320-1, for PCB mounting; Pin temperature: up to +70 °C, 2-pole + ground contact, 10 A/250 VAC (VDE), 15 A/250 VAC (UL). Connection: screw terminals, suitable for devices of safety class I. Housing material: thermoplastic, UL 94 V-0, black. Certifications: VDE, cULus.

Technical attributes (type, for cable diameter, conductor cross-section): 4782.0100, 10 mm, 3 x 1,5 mm² (AWG 14)

Technical specifications
Connection screw connection
Version jack
Design straight
Colour black
IEC designation C13
Cable diameter 10 mm
Cable cross-section 1.5 mm²
Assembly cable assembly
Rated voltage IEC 250 V
Rated voltage UL/CSA 250 V
Rated current IEC 10 A
Rated current UL/CSA 15 A
Line filter present No
Switch illuminated No
Power switch available No
Pin number 3 pole
Fuse holder present No
Pin temperature 70 °C
Type of locking No
Show similar products (0)
Logistics
Country of origin CN
Customs tariff number 85366990
Original Packaging Carton with 100 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
1 item in 6 variations
Item description
Price list
Total
Design
Version
Type of locking
Rated current IEC
Pin number
Rated voltage IEC
Rated current UL/CSA
Cable cross-section
Rated voltage UL/CSA
Cable diameter
Assembly
Connection
Colour
IEC designation
Appliance inlet C13, 3 pole, cable assembly, screw connection, 1.5 mm², black, 4782.0100
Order No.:
 40F955
Manufacturer:
 SCHURTER
Manufacturer SKU
 4782.0100
1 pcs.
3.40 €
10 pcs.
3.14 €
50 pcs.
2.89 €
100 pcs.
2.71 €
3.40 € *
Available: 3,414 pcs.
Next delivery: 100 pcs. on 2023-02-24
straight
jack
No
10 A
3 pole
250 V
15 A
1.5 mm²
250 V
10 mm
cable assembly
screw connection
black
C13
Appliance inlet C13, 3 pole, cable assembly, screw connection, 1.0 mm², black, 4782.0000
Order No.:
 40F950
Manufacturer:
 SCHURTER
Manufacturer SKU
 4782.0000
1 pcs.
3.40 €
10 pcs.
3.14 €
50 pcs.
2.89 €
100 pcs.
2.71 €
3.40 € *
Available: 884 pcs.
Next delivery: 15 pcs. on 2023-02-03
straight
jack
No
10 A
3 pole
250 V
15 A
1.0 mm²
250 V
8.5 mm
cable assembly
screw connection
black
C13
Appliance inlet C13, 3 pole, screw mounting, plug-in connection, gray, 3-122-695
Order No.:
 40F952
Manufacturer:
 SCHURTER
Manufacturer SKU
 3-122-695
1 pcs.
3.82 €
10 pcs.
3.53 €
50 pcs.
3.25 €
100 pcs.
3.06 €
0.00 € *
Currently not in stock, we will order for you
straight
socket
No
10 A
3 pole
250 V
15 A
250 V
10 mm
screw mounting
plug-in connection
gray
C13
Appliance inlet C13, 3 pole, screw mounting, plug-in connection, white, 3-122-698
Order No.:
 40F953
Manufacturer:
 SCHURTER
Manufacturer SKU
 3-122-698
1 pcs.
3.82 €
10 pcs.
3.53 €
50 pcs.
3.25 €
100 pcs.
3.06 €
0.00 € *
Currently not in stock, we will order for you
straight
socket
No
10 A
3 pole
250 V
15 A
250 V
8.5 mm
screw mounting
plug-in connection
white
C13
Appliance inlet C13, 3 pole, screw mounting, plug-in connection, gray, 3-122-694
Order No.:
 40F951
Manufacturer:
 SCHURTER
Manufacturer SKU
 3-122-694
1 pcs.
3.82 €
10 pcs.
3.53 €
50 pcs.
3.25 €
100 pcs.
3.06 €
0.00 € *
Currently not in stock, we will order for you
straight
socket
No
10 A
3 pole
250 V
15 A
250 V
8.5 mm
screw mounting
plug-in connection
gray
C13

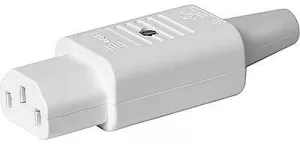

Appliance inlet C13, 3 pole, screw mounting, plug-in connection, white, 3-122-699
Order No.:
 40F954
Manufacturer:
 SCHURTER
Manufacturer SKU
 3-122-699
1 pcs.
3.82 €
10 pcs.
3.53 €
50 pcs.
3.25 €
100 pcs.
3.06 €
0.00 € *
Currently not in stock, we will order for you
straight
socket
No
10 A
3 pole
250 V
15 A
250 V
10 mm
screw mounting
plug-in connection
white
C13
