4782.0000 | SCHURTER

Jack C13, 3 pole, cable assembly, screw connection, 1.0 mm², black, 4782.0000

Order No.: 40F950
EAN: 4099889861358
MPN:
4782.0000
Series: 4782

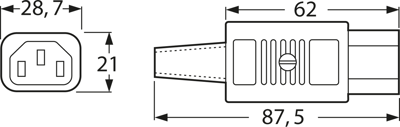

4782.0000 SCHURTER Device Connectors Image 1

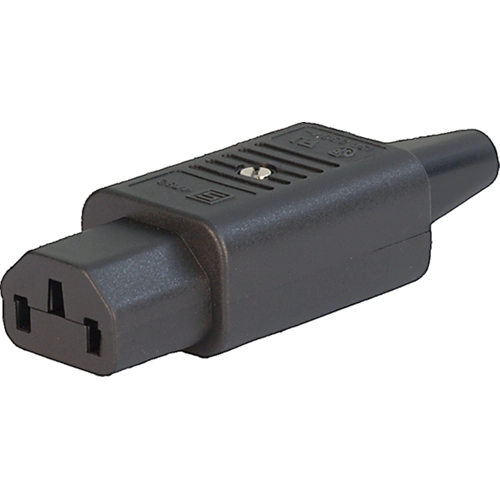

4782.0000 SCHURTER Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
3.8675 € *
Available: 596 pcs.
Next delivery: 400 pcs. on 2025-11-14
Total Price:
3.87 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8675 €
10 pcs.
3.4153 €
100 pcs.
2.9750 €
200 pcs.
2.8560 €
800 pcs.
2.6775 €
*incl. VAT plus shipping costs
Subject to prior sale

IEC cord connectors, type Schurter 4782.

To IEC/EN 60320-1, for PCB mounting; Pin temperature: up to +70 °C, 2-pole + ground contact, 10 A/250 VAC (VDE), 15 A/250 VAC (UL). Connection: screw terminals, suitable for devices of safety class I. Housing material: thermoplastic, UL 94 V-0, black. Certifications: VDE, cULus.

Technical attributes (type, for cable diameter, conductor cross-section): 4782.0000, 8.5 mm, 3 x 1.0 mm² (AWG 18)

Technical specifications
Filter Property Value
Pin temperature 70 °C
Fuse holder present No
Cable diameter 8.5 mm
Assembly cable assembly
Rated voltage UL/CSA 250 V
Connection screw connection
Power switch available No
Design straight
Pin number 3 pole
Type of locking No
IEC designation C13
Switch illuminated No
Rated current UL/CSA 15 A
Rated voltage IEC 250 V
Line filter present No
Product type jack
Rated current IEC 10 A
Colour black
Cable cross-section 1.0 mm²
Logistics
Property Value
Country of origin CN
Original Packaging Carton with 100 pieces
Customs tariff number 85366990
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
