4740.6000 | SCHURTER
Combination element C14 + F, 3 pole, Free-standing, black, 4740.6000
Unit Price (€ / pc.)
51.3247 € *
Available: 36 pcs.
Leadtime: 8 Weeks **
Total Price:
51.32 € *
Price list
Quantity
Price per unit*
1 pcs.
51.3247 €
5 pcs.
48.2426 €
15 pcs.
46.3981 €
50 pcs.
44.3513 €
150 pcs.
42.4949 €
*incl. VAT plus shipping costs
**Subject to prior sale

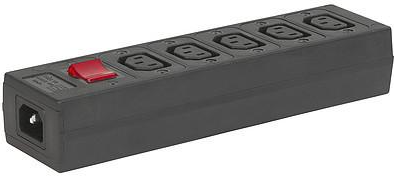

Distributor unit, 4740.6000, SCHURTER
Distribution unit with 1 IEC Appliance inlet C14, 5 EC Appliance outlets F and extra components.
Features
- Stand alone module
- Line switch
- Fuse holder with fuse and neon indicator
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 1
Technical specifications
| Version | plug/socket | |
| Design | straight | |
| Colour | black | |
| IEC designation | C14 + F | |
| Assembly | Free-standing | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 10 A | |
| Rated current UL/CSA | 15 A | |
| Line filter present | Yes | |
| Switch illuminated | No | |
| Power switch available | No | |
| Number of poles switch | 2 pole | |
| Pin number | 3 pole | |
| Fuse holder present | Yes | |
| Pin temperature | 70 °C | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
